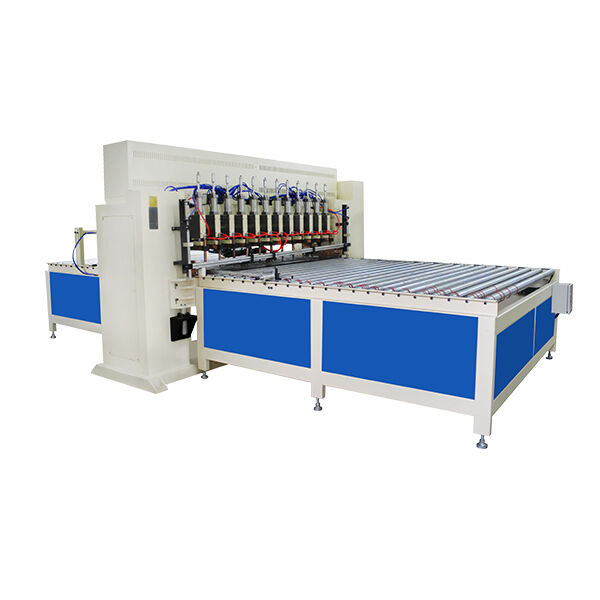

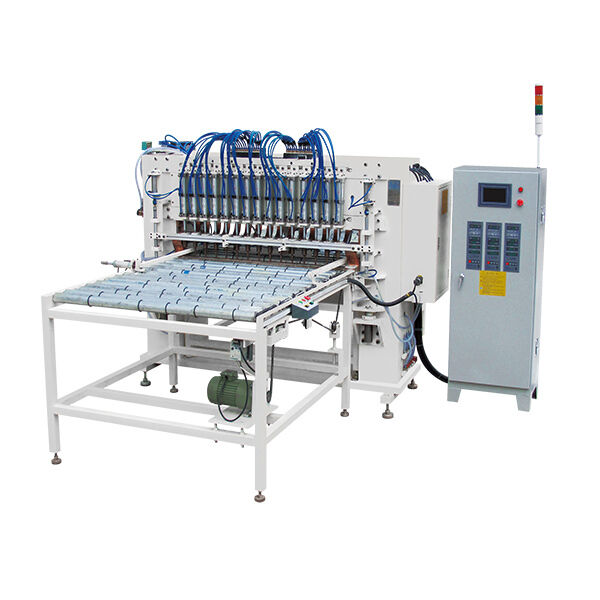

Hwashi 20-Head 380V 2-Phase PLC Control Automatic Spot Welder with 3+3mm Welding Thickness for Stainless Steel

380V PLC control spot welder

automatic stainless steel spot welder

20-head door panel welding machine

Place of Origin:

CE/CCC/ISO

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Request A Quote

Product Details

Product Name:

380V,2-phases

Rated Capacity:

150KVAx4

Warranty Of Core Components:

1 Year

Key Selling Points:

PLC

Max.welding Thickness:

3+3mm

System Controller:

U.S.MCC SCR

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

T/T,L/C

Supply Ability

50 sets per month

PLC Control 380V 2-Phase Multi Head Spot Welding Machine for Door Panels with 3+3mm Welding Thickness

Get Best Price

Video

PLC Control 380V 2-Phase Multi Head Spot Welding Machine for Door Panels with 3+3mm Welding Thickness

Get Best Price

Video

Hwashi PLC Control 380V 2-Phase Door Panel Multi Head Spot Welding Machine with 3+3mm Welding Thickness

Get Best Price

Video

PLC Control Door Panel Spot Welding Machine with 3+3mm Welding Thickness and 380V 2-Phase Power

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

Hwashi 20-Head 380V 2-phases Spotter Welding Machine Automatic Spot Welder For Stainless

HWASHI Sheet Metal Custom Spot Welder Steel Floor Galvanized Panel Automatic Spot Welding Machine for Metal Plate

Product Features

Intellectual touch-screen microcomputer controller with completely digital control
Automatic detection and compensation system prevents loose welding and false welding
Panasonic touch-screen human-computer interface with Panasonic programmer as control hub
Multiple welding electrodes can be moved from left to right for flexible operation
Suitable for welding various products without metal sheet deformation
T Type welding method with instantaneous large current up to 200KA
Precision locating mode with groove R bottom mould and top clamping
Mosaic structure electrodes with R design for circular tube workpieces
Floating terminal device ensures smooth welding surface
Dual-side feeding capability for optimized welding efficiency

Automatic Feeding And Welding System

This Automatic Spot Welding Machine for conveyor belt feeder transports workpieces to the setting position and conducts welding automatically, ensuring consistent and efficient operation.

Technical Specifications

No.	Item	Specification	Description
1	Input voltage	380V, 2-phases	It can be customized, but only for 2-phases
2	Input current	400A
3	Output voltage	12V
4	Max. Welding current	34000A
5	Effective welding width	1200mm (adjustable)
6	Effective welding length	3000mm (adjustable)
7	Feeding Rack Mobile speed	0.5m/sec	Servo motor transmitting
8	Upper welding air cylinder	100x100mm	Double force pressing cylinder
9	Lower cylinder	160x100mm
