Name: Twenty Head Refrigerator Condenser Automatic Welding Machine with Intelligent Control for Bundy Tube Condenser
Brand: Guangdong Hwashi Technology inc.
SKU: WL-SQ-150K×2
Price: 225,000.00 USD
Availability: InStock

Home > Products > Refrigerator Condenser Welding Machine >

Twenty Head Refrigerator Condenser Automatic Welding Machine with Intelligent Control for Bundy Tube Condenser

Twenty Head Refrigerator Condenser Welding Machine

Automatic Feeding System Welding Machine

Intelligent Welding Control Bundy Tube Condenser Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-150K×2

Request A Quote

Product Details

Product Name:

Twenty Head Refrigerator Condenser Automatic Welding Machine For Bundy Tube Condenser

Condition:

New

Warranty:

12 Months

Service Life:

8-10 Years

Weight:

1500kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C,T/T

Supply Ability

50 sets per month

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding

Get Best Price

Video

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding

Get Best Price

Video

Mlaximize Eficiency and with Our Refrigerator Wire Tube Condenser Production line Machine Welding and Bending Machine

Get Best Price

Video

Wire Mesh Welding Machine Comes With An Automatic Unloading Device Making It And Easy To For Your Workers

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

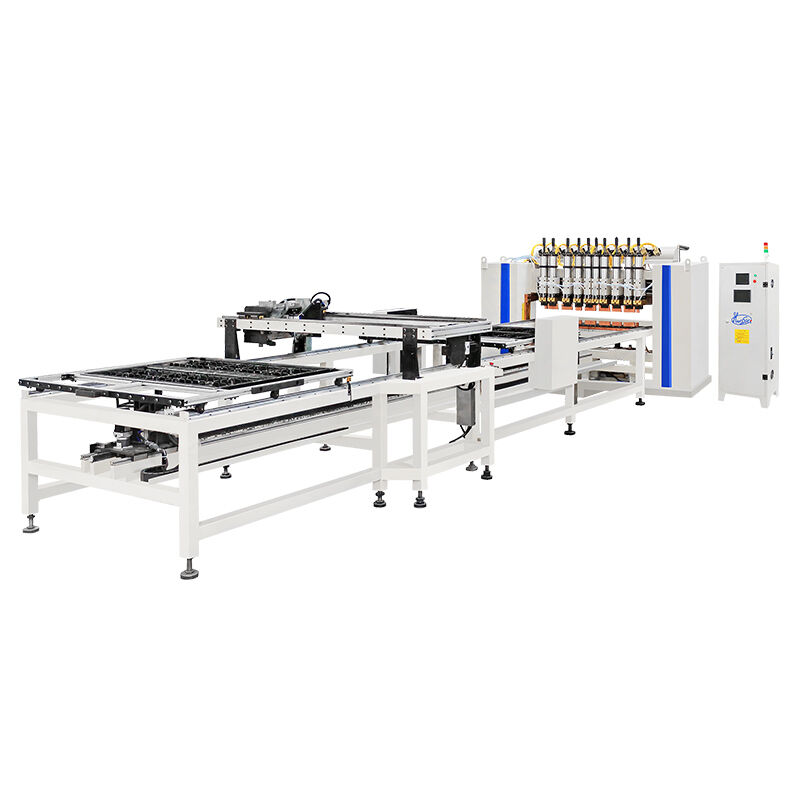

Twenty Head Refrigerator Condenser Welding Machine For Bundy Tube Condenser Automatic

This advanced multi-head spot welding machine features 6 welding heads and an automatic feeding system. Operators simply place materials on the feeder and press start - the machine handles the welding process automatically. Designed with a single-way double-layer feeding system, it offers flexible welding position settings and front-back feeder movement, making it ideal for batch production of wire condensers.

With an effective welding width of 600mm and length of 1500mm, this machine is equipped with a double-layer single-side feeder for efficient production workflows.

Intelligent Welding Control System

Automated welding through coordinate data input for welding positions, current settings, and other parameters.

Welding Heads and Fixtures

Custom processing and design based on specific wire shelf product drawings (customized solutions available).

Magnetic Wire Filling Device

Fast and easy wire loading onto fixtures using a three-step process: load first layer wires, then serpentine tube, followed by final wire layer on the tube.

Automatic Double-layer Feeder

Simultaneous operation - while one fixture undergoes welding, the wire filling system loads wires onto the other fixture. Automatic fixture exchange after welding completion increases overall efficiency.

Technical Specifications

Items	Data
Electricity Requirement	three-phase 380V±10%
Control Mode	PLC
Effective Welding Width	600mm (customized)
Effective Welding Length	1500mm (customized)
Automatic Moving Speed	200-500mm/s (adjustable)
Machine Dimension	6500mmx2500mm (depends on machine design)
Water Temperature	15-25℃

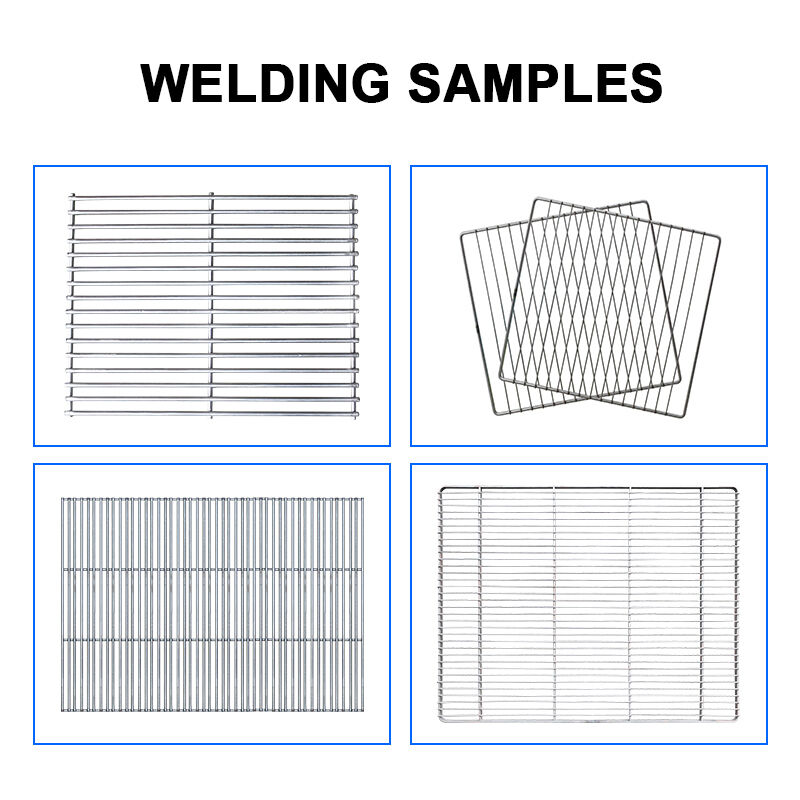

Applications and Samples

The Twenty Head Refrigerator Condenser Automatic Welding Machine is suitable for welding copper and aluminum pipes and is widely used in industries such as air conditioning condensers.

Production Procedure

Frequently Asked Questions

What power source does our machine equipped with?

Our machines utilize medium frequency inverter welding sources. The three-phase power supply undergoes rectification through a specialized inverter, converting to 1000Hz AC voltage, then transmitted to a medium frequency transformer for rectification to provide DC welding current. Compared with general AC pulse power supplies, this system offers faster and more precise adjustment, minimal impact on power grids, and lower grid requirements compared to single-phase welders of similar capacity.

What are the advantages associated about this production line?

Adjustable welding size
High automation level
Utilization of medium-frequency inverter power supply

Is your company offering training for welding systems?

Our welding engineers provide 24-hour online guidance and comprehensive welding training. We supply Chinese and English manuals, circuit diagrams, installation videos, and operation videos to ensure proper system operation and maintenance.
