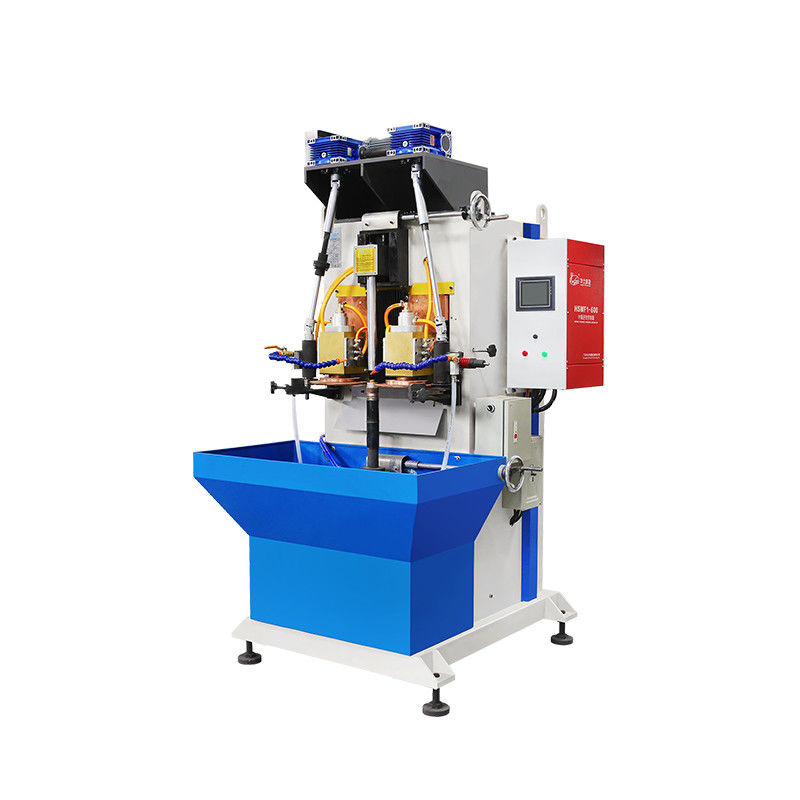

Hwashi Automobile Shock Absorber Automatic Seam Welding Machine
Purpose: The shock absorber rolling welding machine is mainly used for producing critical components of automotive shock absorbers.
Working Principle: This machine utilizes the rotation and pressure of rollers to roll and join different components or materials together, forming the main structure of the shock absorber.
Production Capacity: It has efficient production capacity to meet large-scale production demands.
Automation Level: Typically equipped with an automation control system, it can achieve highly automated operations, improving production efficiency and product quality.
|
Intelligent welding control syste Intelligent Touch Screen Controller |
super hard copper alloy welding wheel Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity. |
Shape structure and welding method Design the right machine shape and mold according tothe welding product and extended welding arms. |

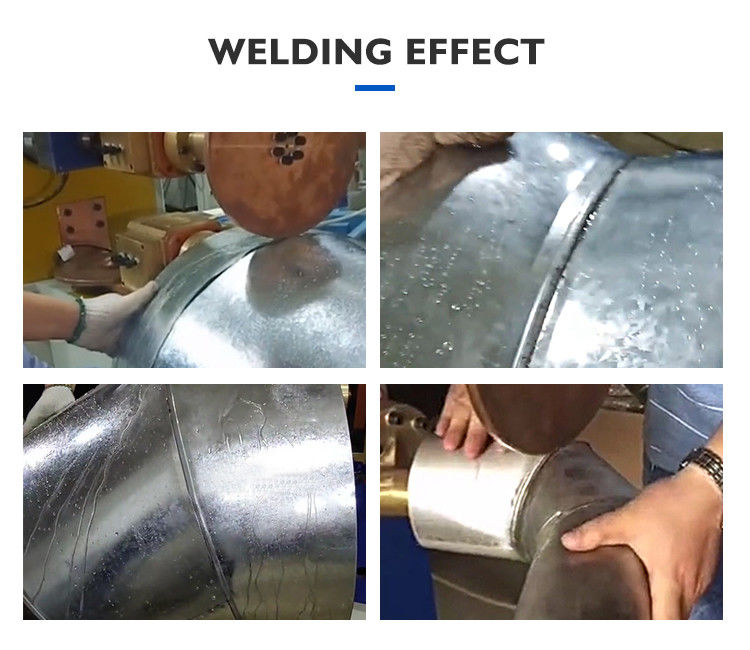

Welding Method of The Seam Welding Machine
Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.
Features of The Seam Welding Machine
High Precision: The shock absorber rolling welding machine adopts advanced control technology and precise processing techniques to achieve high-precision welding and processing, ensuring stable product quality.
High Efficiency: Utilizing automation control systems and high-speed processing techniques, it can achieve efficient production efficiency and increase production capacity.
Strong Stability: It possesses stable operational performance and reliable work stability, allowing for continuous operation for extended periods without failure.
Adjustability: Typically offers some degree of adjustability, allowing for adjustments according to different production needs and product specifications, enhancing production flexibility and adaptability.
Energy Efficiency and Environmental Protection: Energy-saving power systems and environmentally friendly materials are considered in the design and manufacturing process, aligning with the requirements of sustainable development in modern industry.
Specification
| Model | WL-FS-75K | WL-FS-100 | WL-FS-125 | WL-FS-160 | WL-FS-200 | WL-FS-250 |
| Rated Capacity KVA | 75 | 100 | 125 | 160 | 200 | 250 |
| Voltage V | 380*2 | 380*2 | 380*2 | 380*2 | 380*2 | 380*2 |
| Duty Cycle Rate% | 50 | 50 | 50 | 50 | 50 | 50 |
| No Load Voltage V | 1.08-7.02 | 1.12-7.38 | 1.26-8 | 1.3-8.5 | 2.2-9.0 | 1.3-9.7 |
| Max. Welding Thickness mm | 1.2+1.2 | 1.5+1.5 | 1.8+1.8 | 2+2 | 2.5+2.5 | 2.5+3 |
| Upper Wheel Stroke mm | 20-80 | 20-80 | 30-100 | 30-100 | 30-100 | 30-100 |
| Welding Speed m/min | 0.6-4 | 0.5-3.2 | 0.5-2.8 | 0.5-1.5 | 0.5-1.2 | 0.5-1.2 |
| Max. Pressure KN | 6.3 | 6.3 | 8.6 | 8.6 | 8.6 | 8.6 |
| Compressed Air Mpa | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 |
| Cooling Water Consumption L/h | 820 | 960 | 1080 | 1080 | 1080 | 1080 |

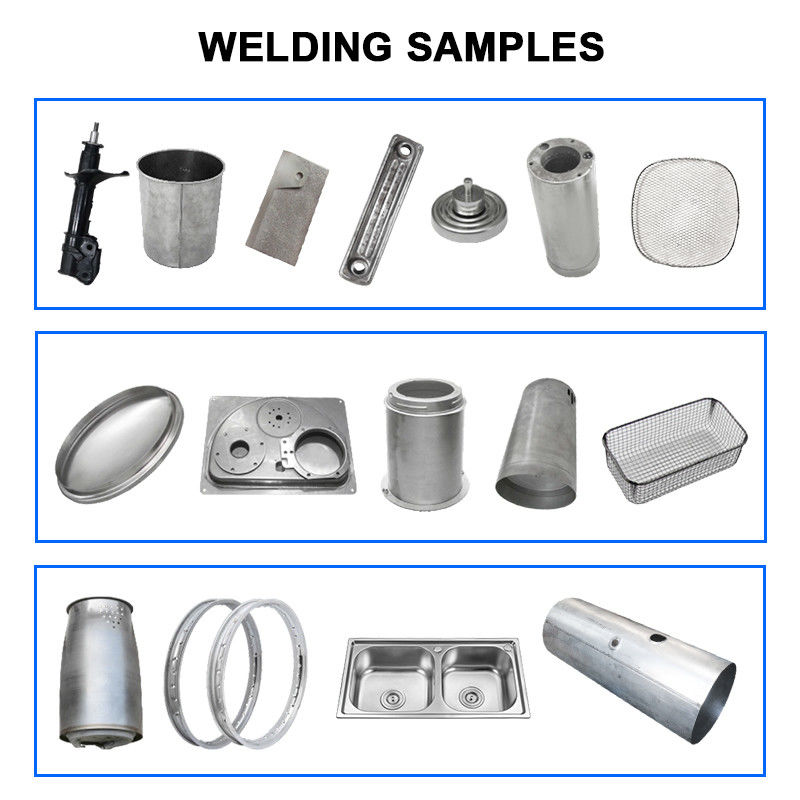

Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
Application Industry of The Seam Welding Machine
Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
