Place of Origin:
China
Brand Name:
Hwashi
Certification:
CE,CCC,ISO
Model Number:
WL-FS

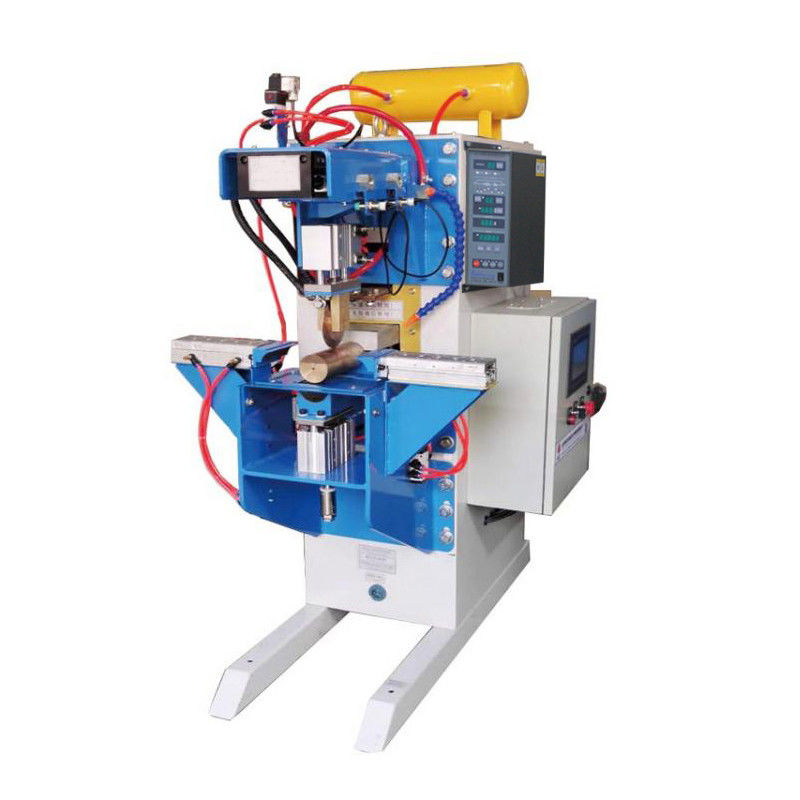

HWASHI Corrugated Elbow 90 degrees Galvanized Stainless Steel Elbow Roll welding machine Ventilation Duct Seam Welder

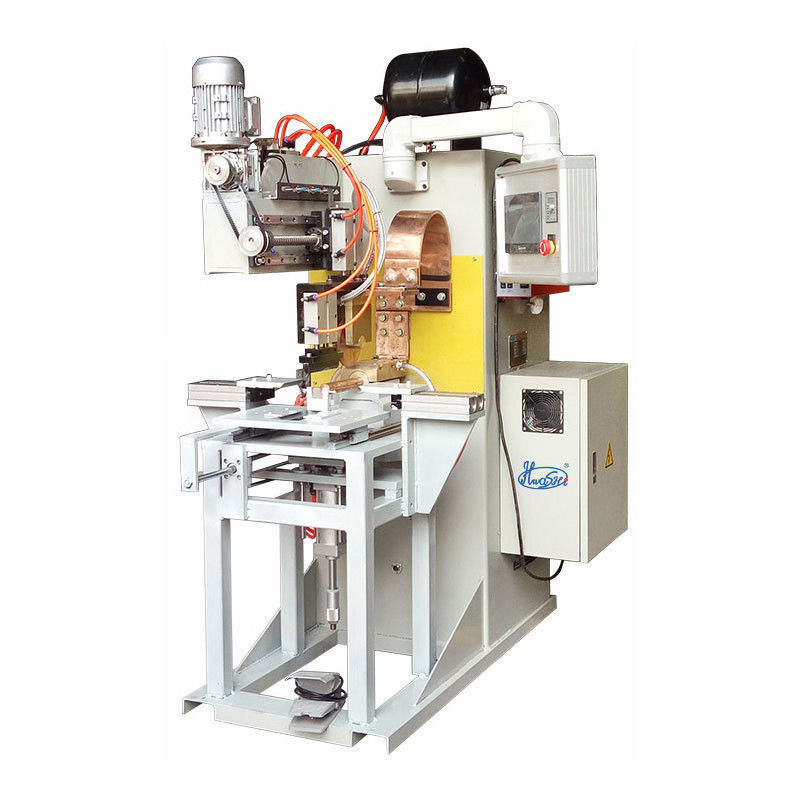

Description Of The Roll-Round Welding And Forming Welding Machine
The roll-round welding and forming machine is an integrated advanced system designed to achieve automatic forming and welding operations on cylindrical workpieces. By combining roll-round forming and welding processes, this equipment significantly enhances production efficiency while ensuring high-quality finished products.
Features Of The Roll-Round Welding And Forming Welding Machine
1. Automated Forming: The equipment features automatic roll-round forming capability, enabling precise and consistent forming of cylindrical workpieces, reducing manual labor and improving operational efficiency.
2. High-Precision Welding: Equipped with advanced high-precision welding technology, the equipment ensures accuracy and consistency during the welding process, guaranteeing the welding quality of the finished products.
The Automatic Roll-Round Welding and Forming Equipment seamlessly integrates forming and welding processes, providing production lines with an efficient and precise solution. Its automation features and integrated design make it an ideal choice for achieving high output and top-quality finished products.
|
Intelligent welding control system Intelligent Touch Screen Controller |
|
|
Stable and Reliable Utilizing water-cooled high-power thyristors, water-cooled high-permeability silicon steel transformer, and water-cooled alloy electrodes, ensuring the equipment operates with stability and reliability while enhancing its durability. |
Integrated Design The integrated design of automatic roll-round forming and welding significantly enhances production efficiency and ensures product quality.
|
Applications And Samples Of The Roll-Round Welding And Forming Welding Machine

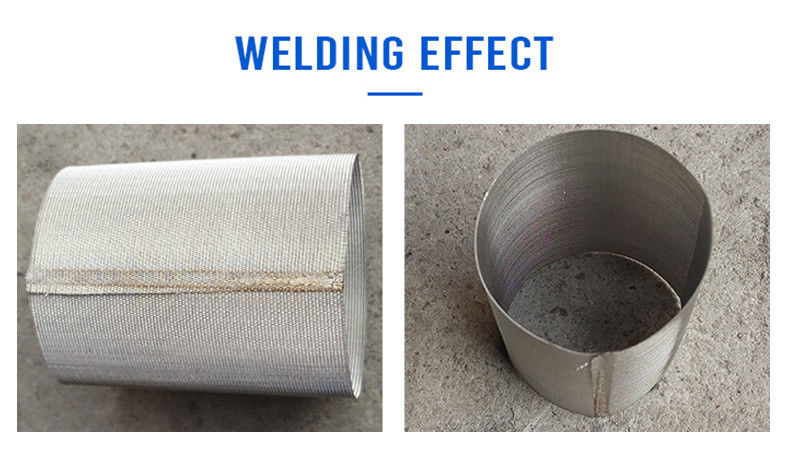

Woven wire mesh filter cartridge is widely used in petroleum, chemistry, metallurgy, machine, medicine, automobile industries for distillation, absorption, evaporation and filtration processes, so as to eliminate the impurities and foam mixed in the gas and liquid.
Welding Method of The Seam Welding Machine
Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.
Features of The Seam Welding Machine
Flexibility: Customizable to meet specific customer requirements, it can accommodate different sizes and shapes of steel wire baskets.
Strong Stability: The equipment has high stability, enabling long-term stable operation and reducing failures and downtime during production.
Reliability: Manufactured with high-quality materials and components, it has a long service life and high reliability, reducing maintenance costs and downtime.
Energy Efficiency and Environmental Protection: Energy-saving power systems and environmentally friendly materials are used in the design and manufacturing process, meeting the requirements of sustainable development in modern industry.
Specification
| Model | WL-FS-75K | WL-FS-100 | WL-FS-125 | WL-FS-160 | WL-FS-200 | WL-FS-250 |
| Rated Capacity KVA | 75 | 100 | 125 | 160 | 200 | 250 |
| Voltage V | 380*2 | 380*2 | 380*2 | 380*2 | 380*2 | 380*2 |
| Duty Cycle Rate% | 50 | 50 | 50 | 50 | 50 | 50 |
| No Load Voltage V | 1.08-7.02 | 1.12-7.38 | 1.26-8 | 1.3-8.5 | 2.2-9.0 | 1.3-9.7 |
| Max. Welding Thickness mm | 1.2+1.2 | 1.5+1.5 | 1.8+1.8 | 2+2 | 2.5+2.5 | 2.5+3 |
| Upper Wheel Stroke mm | 20-80 | 20-80 | 30-100 | 30-100 | 30-100 | 30-100 |
| Welding Speed m/min | 0.6-4 | 0.5-3.2 | 0.5-2.8 | 0.5-1.5 | 0.5-1.2 | 0.5-1.2 |
| Max. Pressure KN | 6.3 | 6.3 | 8.6 | 8.6 | 8.6 | 8.6 |
| Compressed Air Mpa | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 |
| Cooling Water Consumption L/h | 820 | 960 | 1080 | 1080 | 1080 | 1080 |
Application Industry of The Seam Welding Machine
Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
