Place of Origin:
China
Brand Name:
Hwashi
Certification:
CE,CCC,ISO
Model Number:
WL-FS

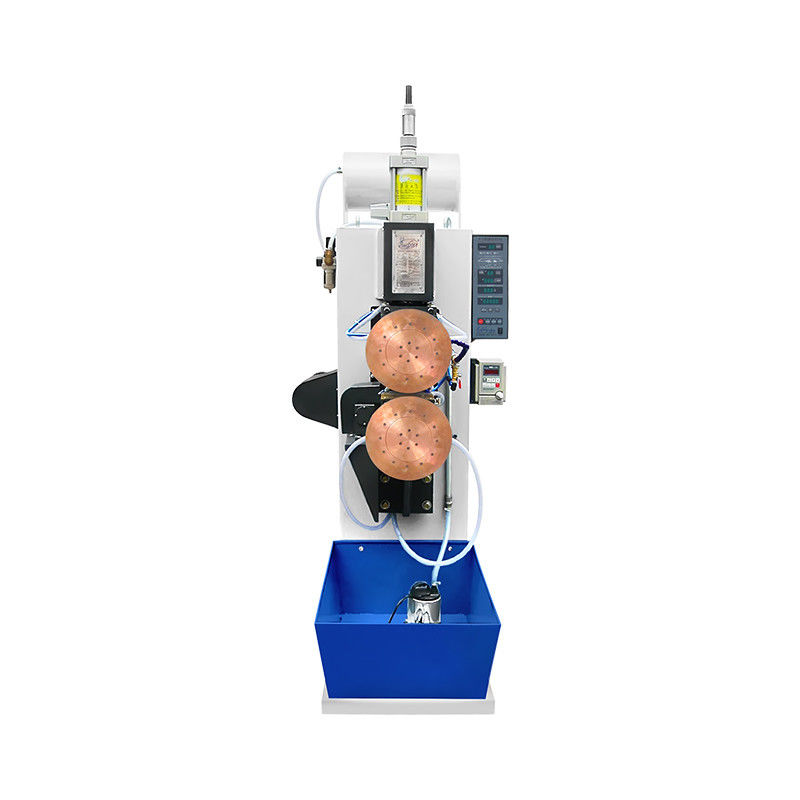

HWASHI Circular Seam Welding / Roll Welding/ Girth Welding Machine
Description of The Seam Welding Machine
Application: The customized resistance spot welding machine is specifically designed for various welding applications, offering tailored solutions to meet specific industrial requirements.
Versatility: It can be customized to weld a wide range of materials, including metals such as steel, aluminum, and copper, catering to diverse manufacturing needs.
Modularity: This machine is designed with modular components, allowing for easy customization and adaptation to different production processes and workflows.
Advanced Technology: Equipped with state-of-the-art resistance welding technology, it ensures precise and efficient welding operations for optimal productivity.
Welding Method of The Seam Welding Machine
Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.
Features of The Seam Welding Machine
Tailored Solutions: The customized resistance spot welding machine is engineered to meet specific customer requirements, providing tailor-made solutions to address unique welding challenges.
Flexibility: It offers flexibility in terms of welding parameters, electrode configurations, and control systems, enabling users to adapt to changing production demands and material characteristics.
High Precision: Utilizing advanced control systems and precision welding electrodes, it delivers high-precision welds with consistent quality and repeatability.
Scalability: Designed for scalability, it can accommodate future expansions or modifications to meet evolving production needs and business growth.
User-Friendly Interface: Equipped with an intuitive user interface and programming capabilities, it facilitates easy operation, setup, and maintenance, minimizing downtime and enhancing productivity.
Reliability: Built with robust materials and components, it ensures long-term reliability and durability, minimizing the risk of breakdowns and production disruptions.
Specification of The Seam Welding Machine
|
Model |
WL-FS-75K |
WL-FS-100 |
WL-FS-125 |
WL-FS-160 |
WL-FS-200 |
WL-FS-250 |
|
Rated Capacity KVA |
75 |
100 |
125 |
160 |
200 |
250 |
|
Voltage V |
380*2 |
380*2 |
380*2 |
380*2 |
380*2 |
380*2 |
|
Duty Cycle Rate% |
50 |
50 |
50 |
50 |
50 |
50 |
|
No Load Voltage V |
1.08-7.02 |
1.12-7.38 |
1.26-8 |
1.3-8.5 |
2.2-9.0 |
1.3-9.7 |
|
Max. Welding Thickness mm |
1.2+1.2 |
1.5+1.5 |
1.8+1.8 |
2+2 |
2.5+2.5 |
2.5+3 |
|
Upper Wheel Stroke mm |
20-80 |
20-80 |
30-100 |
30-100 |
30-100 |
30-100 |
|
Welding Speed m/min |
0.6-4 |
0.5-3.2 |
0.5-2.8 |
0.5-1.5 |
0.5-1.2 |
0.5-1.2 |
|
Max. Pressure KN |
6.3 |
6.3 |
8.6 |
8.6 |
8.6 |
8.6 |
|
Compressed Air Mpa |
0.5 |
0.5 |
0.6 |
0.6 |
0.6 |
0.6 |
|
Cooling Water Consumption L/h |
820 |
960 |
1080 |
1080 |
1080 |
1080 |

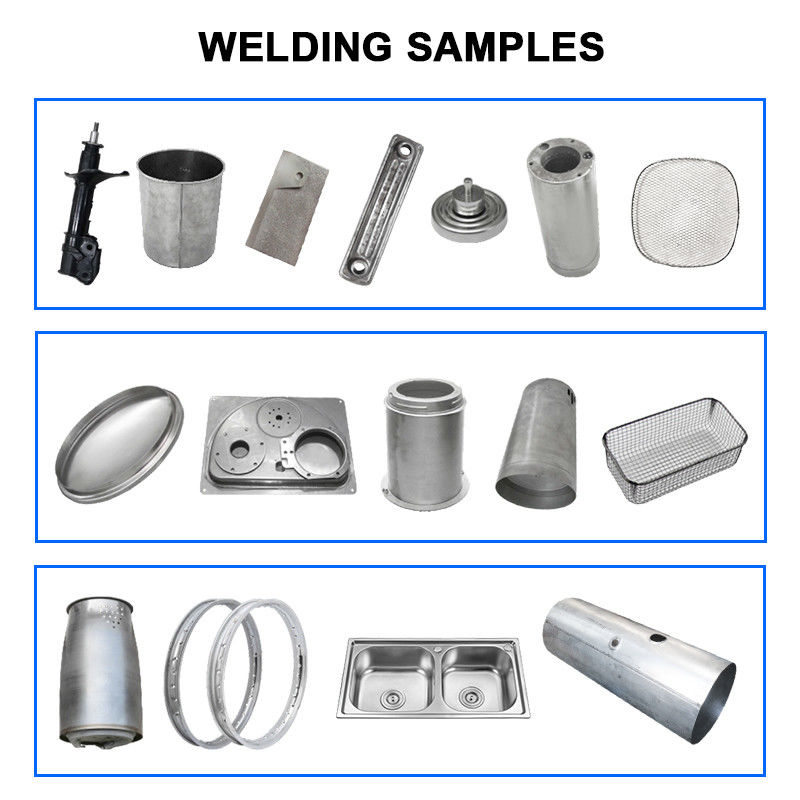

Application and samples of The Seam Welding Machine
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
Application Industry of The Seam Welding Machine
Suitable for the welding of sheet, barrel body, box and sealed thin-wall container with different material, such as carbon steel, stainless steel, titanium, nickel and other materials. For fuel tank of automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.
