Multi Spot Sheet Metal Welder Door Panel Multi Head Spot Welding Machine

Multi Spot Sheet Metal Welder Door Panel Multi Head Spot Welding Machine

multi spot welding

multi head spot welding machine

multi spot welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE

Model Number:

WL-SF-MF75K

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Multi Head Sheet Metal Welder Door Panel Multi Spot Welding Machine
Condition:
New
Warranty:
12 Months
Service Life:
8-10 Years
Weight:
500kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
T/T, L/C
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Product Description

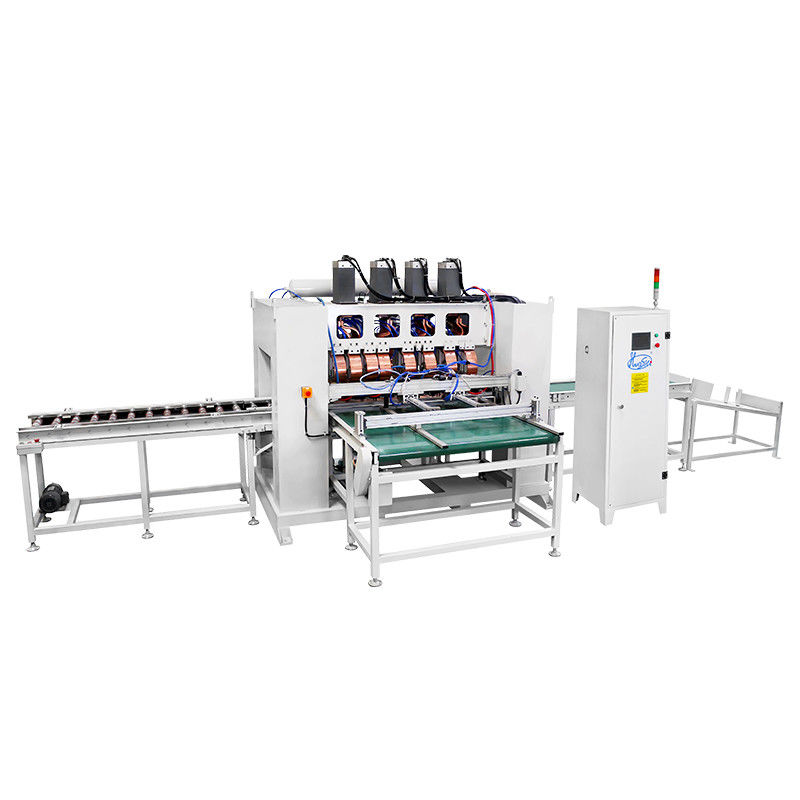

HWASHI Multi Head Sheet Metal Welder Door Panel Multi Spot Welding MachineMulti Spot Sheet Metal Welder Door Panel Multi Head Spot Welding Machine 0

Description

This Door Panel Multi Head Spot Welding Machine adopts multiple welding heads with automatic welding. You can choose multi head welding at the same time or each head welding in turns. It is suitable for door panel or sheet metal multi spot welding.
The effective welding width is 1000mm to 2000mm while the effective welding length is 300mm (customized). The material thickness is ranging from 0.4mm to 1.5mm.

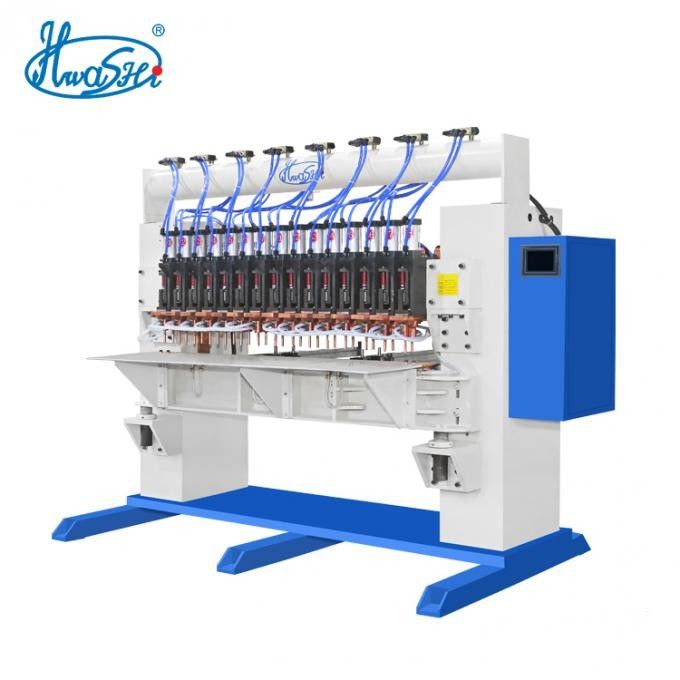

Multi Spot Sheet Metal Welder Door Panel Multi Head Spot Welding Machine 1

Working Process

* Manually put the workpiece onto the table;
* Press the start button, then the machine will conduct welding automatically for one line of spots;
* After welding one line, then manually move the product to another line. Then press the start button again.
* Cycle working



Features

  • Flexible using: you can adjust the welding head distance as per your drawing request. Only need to loose the bolts on the cylinder then you can move the cylinder from left to right.
  • Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.
  • Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.
  • Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased.

Parameter

S.N

Items

WL-SF-MF160K

WL-SF-MF120K

WL-SF-MF100K

1

Input Voltage

380V,3-Phase

380V,3-Phase

380V,3-Phase

2

Input Power

160KVA

120KVA

100KVA

3

Max.Welding Current

32000A

30000A

28000A

4

Max. Electrode Force

2.2KN

2.2KN

2.2KN

5

Welding Capacity

3+3mm

2+2mm

1+1mm



Welding samples

Multi Spot Sheet Metal Welder Door Panel Multi Head Spot Welding Machine 2

Multi Spot Sheet Metal Welder Door Panel Multi Head Spot Welding Machine 3
