Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE
Model Number:
WL-SF-MF75K

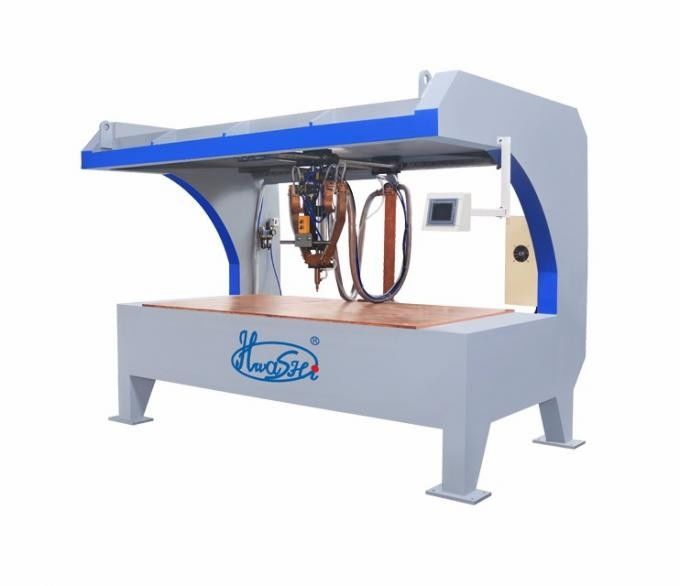

HWASHI Railway Roof Type Sheet Metal Platform Moving Spot Welding Machine
Description
This Railway Roof Type DC Table Spot Welding Machine is the best choice for metal door manufacturers and perfect for sealing horizontal and vertical surfaces due to their simplicity, reliability, being easy to operate and at the same time highly efficient and multifunctional.
Welding machines with copper table, welding head balanced and easy to handle. Great flexibility with solutions for steel, galvanized steel, aluminium. Conventional generators Medium Frequency (1000 Hz). The first prototype of the Roof type spot welding Machine was developed to meet the needs of a worldwide customer. The mission was to weld pieces heavy and thick in a fixed position.
The solution has been, is and will be the series table Roof, which in fact meets these expectations. Thanks to the easy handling of the welding head positioned above the work pieces, staking them exactly where required. Easy set-up, to use, maximum flexibility and versatility: targets achieved. Possibility to choose between different models (for example, one head, two heads, X vertical gun, G vertical gun, different sizes, different powers, quality control, etc. …) which meet the specific needs of the end user. Constant control of the current, active on every part of the copper bench, by means of a toroid belt, controlled by a Medium Frequency system (Inverter).
|
|
Welding platform Flat big copper table for welding various sheet metal door panels. If the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The welding gun move freely, allowing easy access to the desired welding point by one person. |
|
|
Standard Welding Electrode Welding can be done efficiently by changing the electrode tip according to the type and size of product. It can also weld nut, or screws, etc. |
|
|
Easy Set up and Operation. Comfortable working position: There is no need to hold the workpiece during welding; Pressurization is also automatic, greatly reducing the physical burden on the operator. |
Advantages
Refined welding
No need for special equipment
Maximally easy working area access
Production flexibility
Reduced labor costs
Horizontal and vertical surface welding
Single-Arm Table Spot Welding Machine * Refined welding
No need for special equipment
Maximally easy working area access
Production flexibility
Reduced labor costs
Horizontal and vertical surface welding
Single-Arm Table Spot Welding Machine
Parameters
|
S.N |
Items |
WL-SF-MF160K |
WL-SF-MF120K |
WL-SF-MF100K |
|
1 |
Input Voltage |
380V,3-Phase |
380V,3-Phase |
380V,3-Phase |
|
2 |
Input Power |
160KVA |
120KVA |
100KVA |
|
3 |
Max.Welding Current |
32000A |
30000A |
28000A |
|
4 |
Max. Electrode Force |
2.2KN |
2.2KN |
2.2KN |
|
5 |
Welding Capacity |
3+3mm |
2+2mm |
1+1mm |
|
6 |
Welding Schedule |
32 Kinds |
||
|
7 |
Effective Size Of Welding Platform |
2200x1200mm (customized) |
||
|
8 |
Max.Moving Range Of Arm |
2000mm |
||

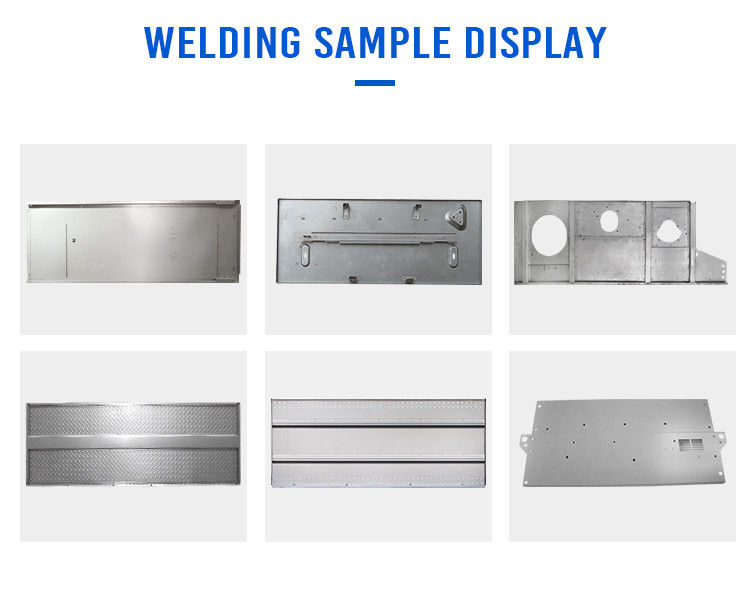

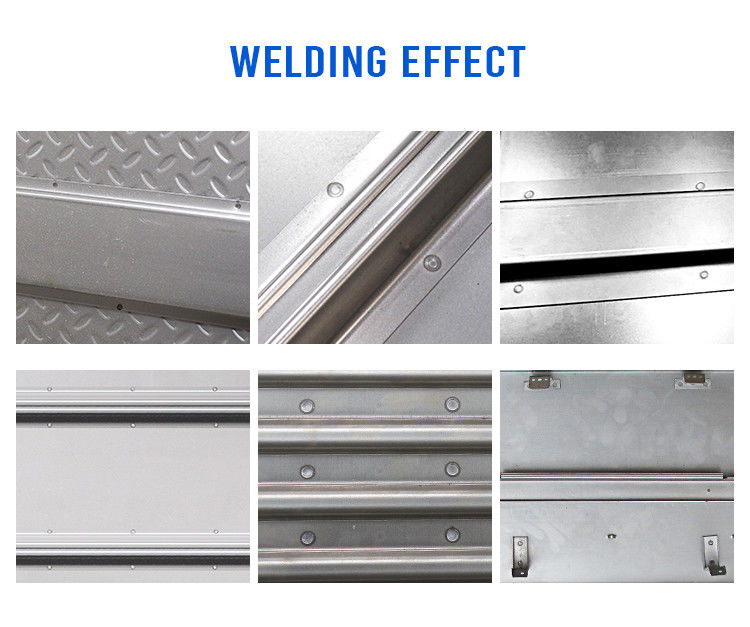

Welding samples
Applicable industries
Various industries such as chassis and cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, etc.
