Name: Panel Sheet Metal Spot Welder Gantry Type Multipoint Welding Machine
Brand: Guangdong Hwashi Technology inc.
SKU: according to your product
Price: 225,000.00 USD
Availability: InStock

Home > products > Door Panel Spot Welding Machine >

Panel Sheet Metal Spot Welder Gantry Type Multipoint Welding Machine

metal spot welder

panel spot welder

multipoint welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

according to your product

Request A Quote

Product Details

Product Name:

HWASHI Best Price And High Quality Sheet Metal Gantry Type Multipoint Welding Machine

Application:

Welding Metal Sheet In Electronic Appliances,warning Board,automobile And Other Industries.

Size:

According To Your Product

Condition:

New

Warranty:

12months

Certificate:

CE/CCC/ISO

Service Life:

8-10 Years

Weight:

480kg

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiation

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

50Hz Frequency Door Plate Spot Welding Machine for Steel/Aluminum Material

Get Best Price

Video

8-10 Years Service Life Door Panel Spot Welder for 220V/380V Power Supply and Durable

Get Best Price

Video

High Speed Door Panel Spot Welding Machine For Manufacturing Industry And 8-10 Years Service Life

Get Best Price

Video

Speed Door Plate Spot Welding Machine 500kg Capacity Welding Speed 0.5-2.5m/min for Heavy-Duty Welding

Get Best Price

+8613380655800

marketing@hwashi.com

Contact Now

Product Description

HWASHI Best Price and High Quality Sheet Metal Gantry Type Multipoint Welding Machine

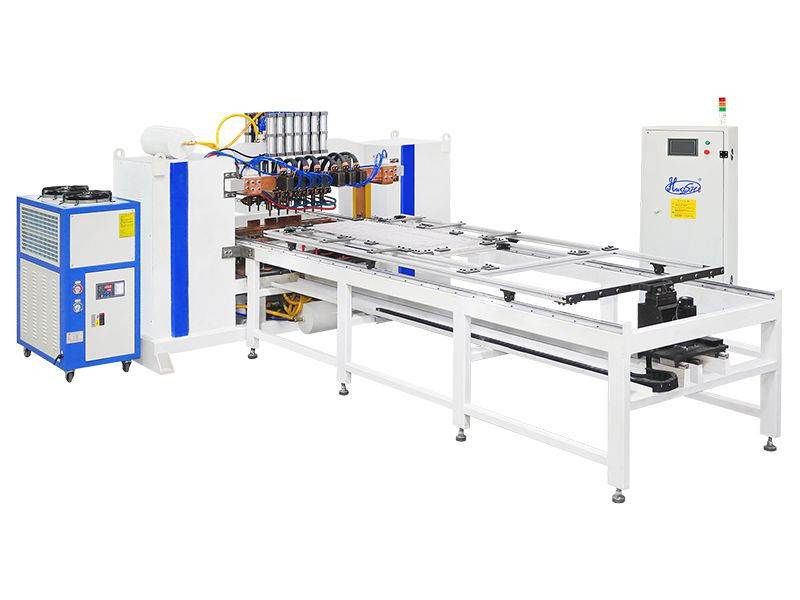

Panel Sheet Metal Spot Welder Gantry Type Multipoint Welding Machine 0

Detailed Description Of Sheet Metal Gantry Type Multipoint Welding Machine

This machine design with gantry type welding machine. Use manual loading of sign plate onto the roller feeder. Then it will move automatically to the welding machine. The welding machine is equipped with two welding heads. The profiles will be placed on the conveyor belt by manual or connected to the profiles punching line. Then it will be placed to the welding position by mechanical arm. After welding, the whole product will be unloaded and stacked by mechanical arm.

Features Of Sheet Metal Gantry Type Multipoint Welding Machine

1.The Welding spots are good in looking, firm, and stable and reliable. Well consistency of welding spots.

2. Realize automatic welding.

3. Wide application. The machine, electricity and other mechanism could be reasonably assembled. It could be used to weld other similar products after relevant modification of microcomputer data program. One machine could serve several purposes.

4. Design Working Life: 8-10 years

Specification Of Sheet Metal Gantry Type Multipoint Welding Machine

Items	Data
Cable Requirent	Three-phase 380V/50mm²/160A
Rated Capacity	100KVA*2
Duty Cycle Rate	50％
Frequency	1000HZ
Control Heat Adjusting Range	15%～99%
Max. Output Voltage	DC7.8V
Secondary Max. Short Circuit Current	20KA
Program Section Time Adjusting Range	0～999ms
Welding Schedule	32 types

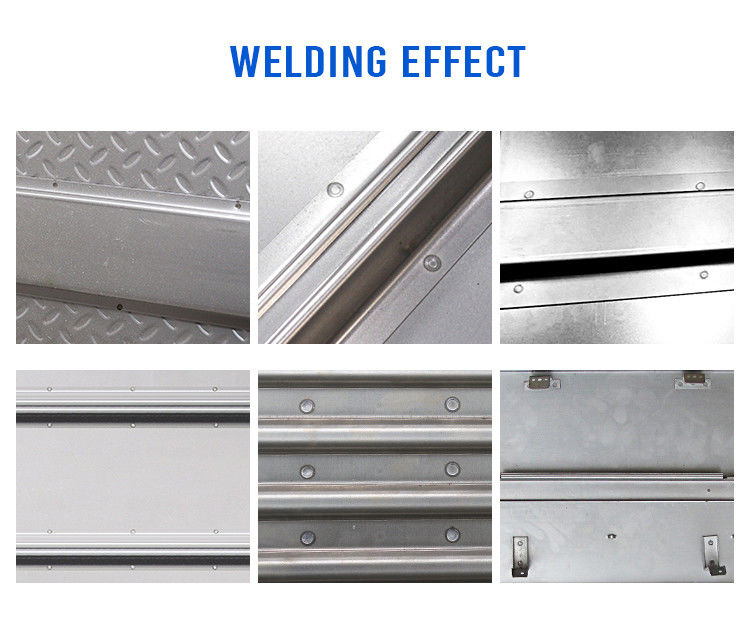

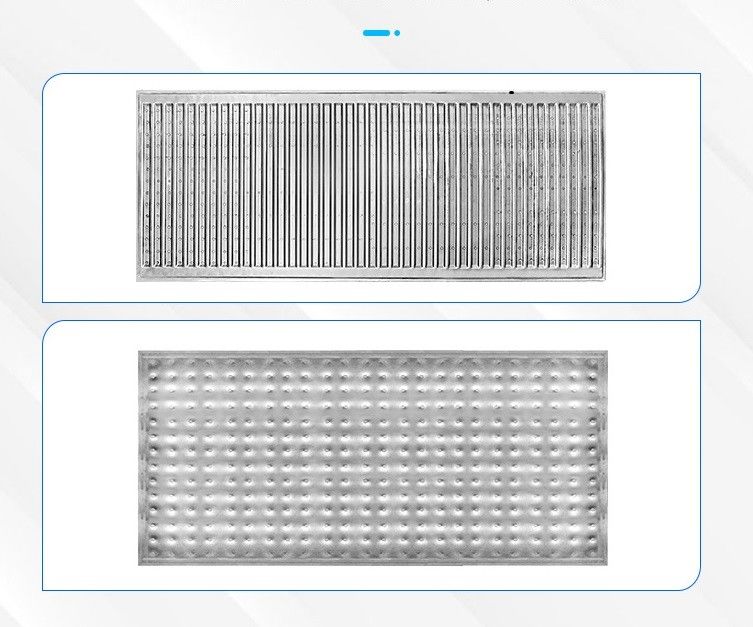

Application And Samples Of Sheet Metal Gantry Type Multipoint Welding Machine

This machine is extremely suitable for welding metal sheet in electronic appliances,warning board,automobile and other industries.

Panel Sheet Metal Spot Welder Gantry Type Multipoint Welding Machine 1
