Door Panel Multi Head Spot Welding Machine Sheet Metal Multi Spot Welding Machine

Door Panel Multi Head Spot Welding Machine Sheet Metal Multi Spot Welding Machine

Door Panel Multi Head Spot Welding Machine

Multi Spot Welding Machine

Sheet Metal Multi Spot Welding Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

According to your product

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Door Panel Multi Head Spot Welding Machine Sheet Metal Multi Spot Welding Machine
Application:
Door Panel Or Sheet Metal
Size:
According To Your Product
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
According To Your Product
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI Door Panel Multi Head Spot Welding Machine Sheet Metal Multi Spot Welding Machine

Door Panel Multi Head Spot Welding Machine Sheet Metal Multi Spot Welding Machine 0

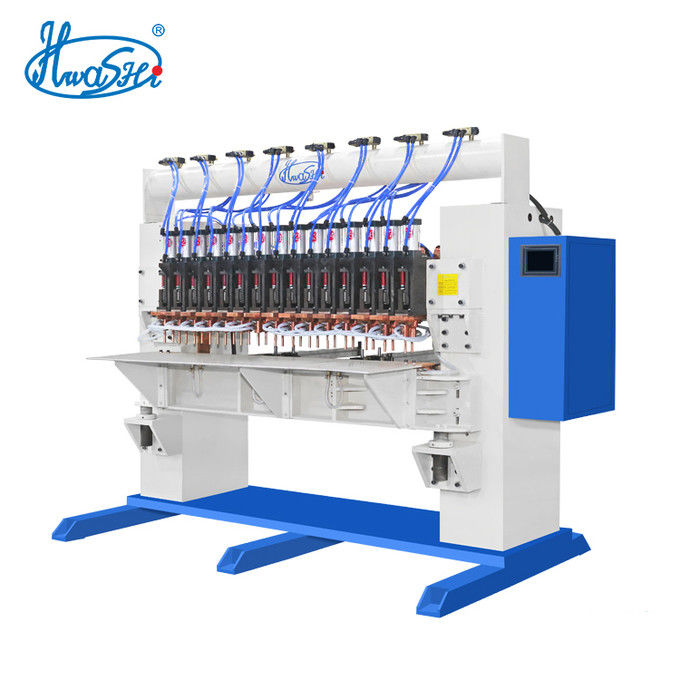

Description Of The Multi Head Spot Welding Machine

This door panel multi head spot welding machine adopts multiple welding heads with automatic welding. You can choose multi head welding at the same time or each head welding in turns. It is suitable for door panel. The effective welding width is 1000mm to 2000mm while the effective welding length is 300mm (customized). The material thickness is ranging from 0.4mm to 1.5mm.

Door Panel Multi Head Spot Welding Machine Sheet Metal Multi Spot Welding Machine 1



Working Process Of The Multi Head Spot Welding Machine

* Manually put the workpiece onto the table;
* Press the start button, then the machine will conduct welding automatically for one line of spots;
* After welding one line, then manually move the product to another line. Then press the start button again.
* Cycle working



Features Of The Multi Head Spot Welding Machine
1. Flexible using: you can adjust the welding head distance as per your drawing request. Only need to loose the bolts on the cylinder then you can move the cylinder from left to right.
2. Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.
3. Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.
4. Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased.



Advantages Of The Multi Head Spot Welding Machine

* Refined welding
* No need for special equipment
* Multi head welding at the same time
* Maximally easy working area access
* Production flexibility
* Reduced labor costs



Specification Of The Multi Head Spot Welding Machine

S.N
Items WL-SF-MF160K WL-SF-MF120K WL-SF-MF100K
1 Input Voltage 380V,3-Phase 380V,3-Phase 380V,3-Phase
2 Input Power 160KVA 120KVA 100KVA
3 Max.Welding Current 32000A 30000A 28000A
4 Max. Electrode Force 2.2KN 2.2KN 2.2KN
5 Welding Capacity 3+3mm 2+2mm 1+1mm
6 Welding Schedule 32 Kinds
7 Effective Size Of Welding Platform 2000x300mm (customized)
8 Welding Head Numbers 10 to 20 (as per your drawings)
9 Distance Between Electrodes 100-300mm

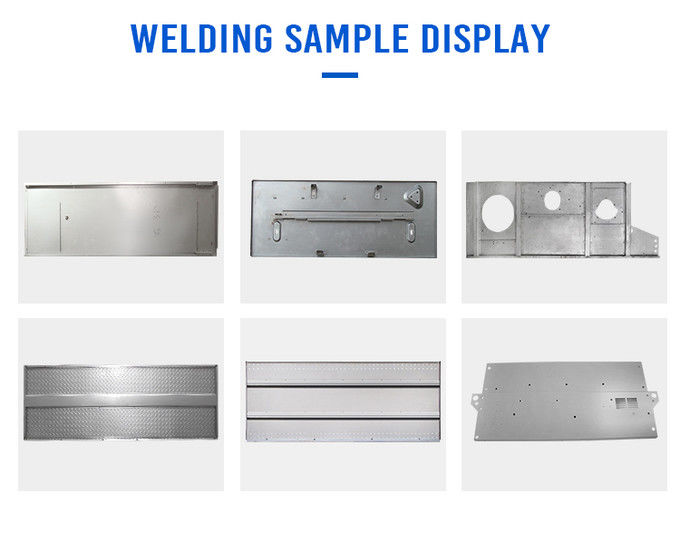

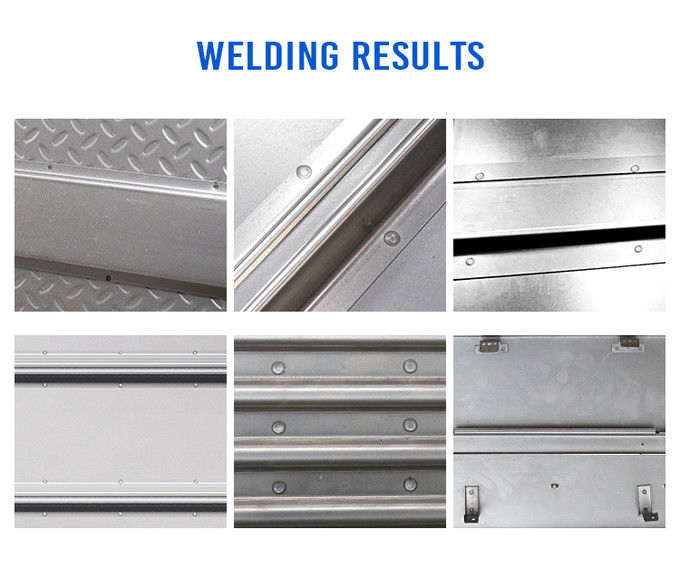

Samples Of The Multi Head Spot Welding Machine

Door Panel Multi Head Spot Welding Machine Sheet Metal Multi Spot Welding Machine 2Door Panel Multi Head Spot Welding Machine Sheet Metal Multi Spot Welding Machine 3

Door Panel Multi Head Spot Welding Machine Sheet Metal Multi Spot Welding Machine 4Door Panel Multi Head Spot Welding Machine Sheet Metal Multi Spot Welding Machine 5
