Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder

Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder

benchtop spot welder

bench top spot welder

bench spot welding machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

according to your products

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI Factory Sheet Metal Crank-Arm Movable Table Spot Welding Machine
Application:
Welding Of Metal Plate, Computer Cases, Electric Control Cabinet, Office Cabinet And Automobile Metal Plates.
Size:
According To Your Product
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
According To Your Product
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI Factory Sheet Metal Crank-Arm Movable Table Spot Welding Machine

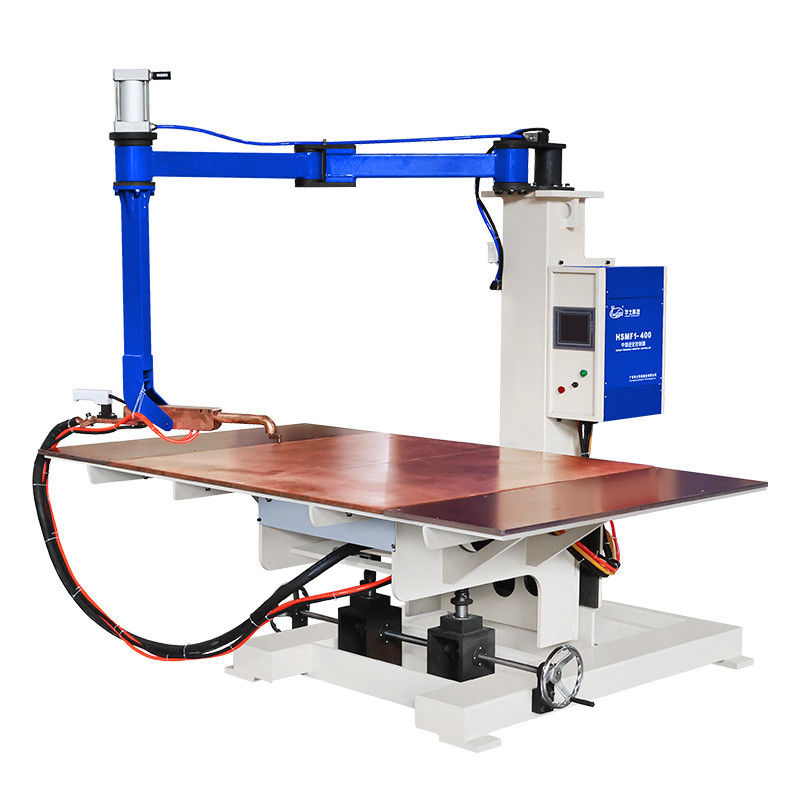

Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 0

Description Of The Movable Table Spot Welding Machine

The movable Table Spot Welding Machine uses the principle of Robotic. Multiple elbow active machine arm adopts automatic mobile mode to be moved to a welding position as per the welding requirement. The machine is of easy operation, convenient and flexible to use. The welding characteristic is that it adopts double-side single point welding mode, with a fully flat design for lower welding electrode. It is applicable for welding multiple-point product on a flat surface. It can effectively guarantee smooth welding on product surface and consistency of welding spots.

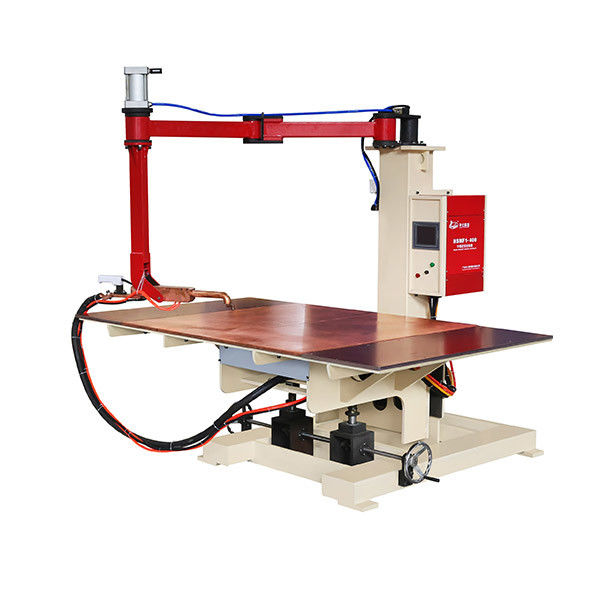

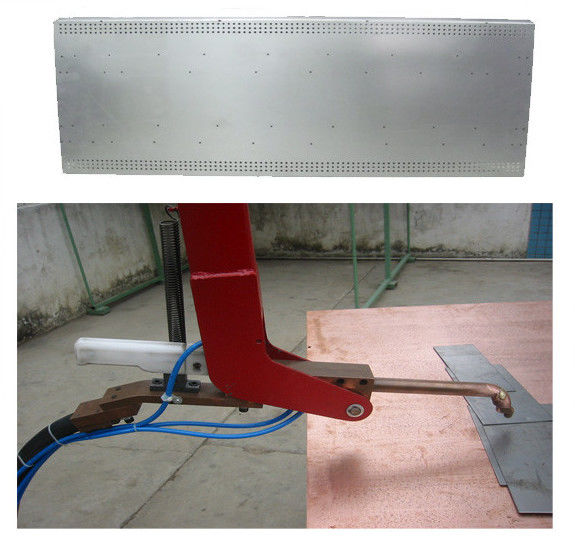

Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 1 Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 2

Intelligent welding control system

Intelligent Touch Screen Controller Input and read
welding parameters.

Welding platform

Oversized copper plate operating table for welding various sheet metal door panels.

Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 3 Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 4

Horizontal Welding Gun

The H-gun is a long horizontal gun suitable for welding complex workpiece shapes and deep areas. It is possible to weld as desired while moving the gun freely on the table electrode.

Vertical Welding Gun

The V-gun is the most suitable gun for welding deep box products that are closed on all sides. The tip of the gun has a crank shape that makes it easy to aim at the edge of the workpiece.

Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 5  Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 6

Screws or Nut Welding Electrode Holder

Special Design Welding Electrode for Cabinet



Features Of The Movable Table Spot Welding Machine

1. Labor saving: With the table spot welder, if the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The two guns move freely, allowing easy access to the desired welding point by one person.
2. Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.
3. Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.

4. Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the table-type electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased. Can also weld nuts and screws: Welding can be done efficiently by changing the electrode tip according to the type and size of nut, etc.



Technical Parameter Of The Movable Table Spot Welding Machine

S.N Items WL-SMF-40K WL-SMF-50K WL-SMF-75K
1 Input voltage 380V,3 phases 380V,3 phases 380V,3 phases
2 Input current 65A 80A 80A
3 Output voltage 8.5V 10V 12V
4 Max.Welding Current 15000A 18000A 26000A
5 Welding Specification 18 kinds 18 kinds 18 kinds
6 Different Welding Current 6 kinds 6 kinds 6 kinds
7 Effective size of welding platform 800mmx800mm 800mmx800mm 2000mmx800mm
8 Max.range of Crank moving 1000mm 1000mm 1200mm
9 Max.angle of Crank moving 180° 180° 180°
10 Adjusting rang of platform height 0-200mm 0-200mm 0-200mm



Application Of The Movable Table Spot Welding Machine

Welding of metal plates, especially good for welding of computer cases, electric control cabinet, office cabinet and automobile metal plates.



Sample Of The Movable Table Spot Welding Machine

Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 7

Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 8Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 9Crank-Arm Movable Table Top Spot Welding Machine Bench Spot Welder 10
