Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder

Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder

Sheet Metal Spot Welding Machine

Platform Moving Spot Welding Machine

Railway Roof Type Spot Welder

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

according to your products

Contact Us
Request A Quote
Product Details
Product Name:
Hwashi Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder
Application:
Welding Of Metal, Etc.
Size:
According To Your Product
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
According To Your Product
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

Hwashi Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder

Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder 0

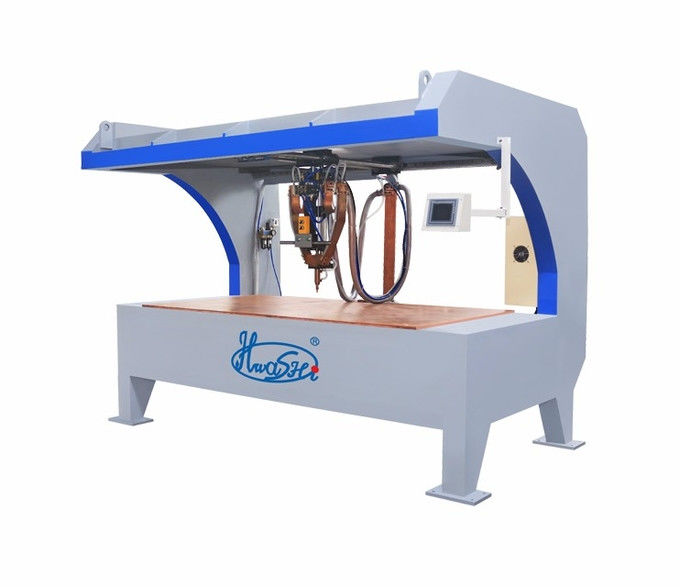

Description Of The Platform Moving Spot Welding Machine
This platform moving spot welding machine is the best choice for metal door manufacturers and perfect for sealing horizontal and vertical surfaces due to their simplicity, reliability, being easy to operate and at the same time highly efficient and multifunctional.  Welding machines with copper table, welding head balanced and easy to handle. Great flexibility with solutions for steel, galvanized steel, aluminium.



Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder 1

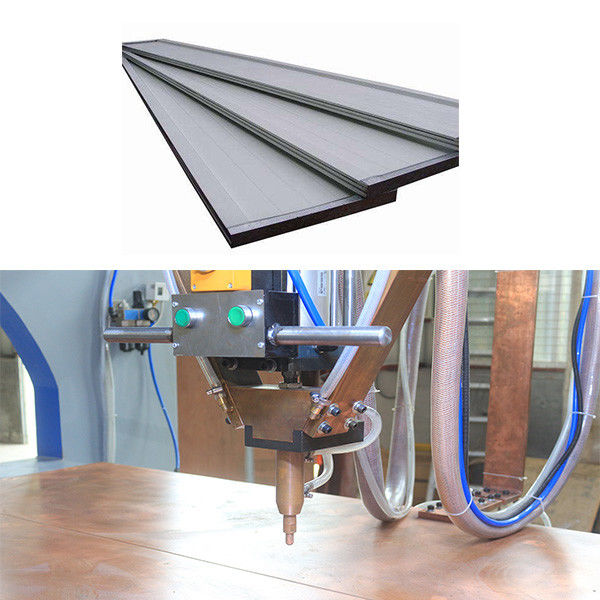

Welding platform
Flat big copper table for welding various sheet metal door panels. If the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The welding gun move freely, allowing easy access to the desired welding point by one person.



Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder 2



Standard Welding Electrode
Welding can be done efficiently by changing the electrode tip according to the type and size of product. It can also weld nut, or screws, etc.



Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder 3




Easy Set up and Operation.
Comfortable working position: There is no need to hold the workpiece during welding; Pressurization is also automatic, greatly reducing the physical burden on the operator.


Features Of The Platform Moving Spot Welding Machine
1. Labor saving: With the table spot welder, if the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The welding gun move freely, allowing easy access to the desired welding point by one person.
2. Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.
3. Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.
4. Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the table-type electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased.



Technical Parameter Of The Platform Moving Spot Welding Machine

S.N Items WL-SF-MF160K WL-SF-MF120K WL-SF-MF100K
1 Input Voltage 380V,3-Phase 380V,3-Phase 380V,3-Phase
2 Input Power 160KVA 120KVA 100KVA
3 Max.Welding Current 32000A 30000A 28000A
4 Max. Electrode Force 2.2KN 2.2KN 2.2KN
5 Welding Capacity 3+3mm 2+2mm 1+1mm
6 Welding Schedule 32 Kinds
7 Effective Size Of Welding Platform 2200x1200mm (customized)
8 Max.Moving Range Of Arm 2000mm
9 Max.Moving Angle Of Crank 180°


Application Of The Platform Moving Spot Welding Machine

The platform moving spot welding machines are suitable for welding of metal plates, especially good for welding of computer cases, electric control cabinet, office cabinet and automobile metal plates. dc table spot welding machine for aluminium have many similar functions.

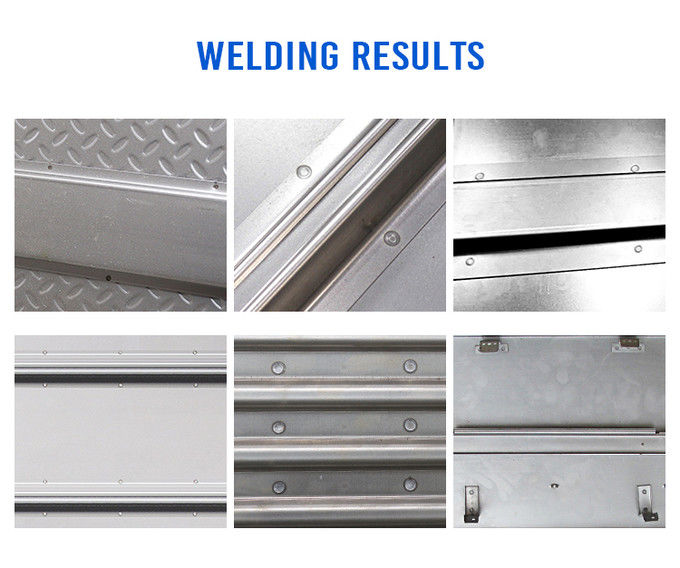

Samples Of The Platform Moving Spot Welding Machine

Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder 4Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder 5

Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder 6Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder 7Sheet Metal Platform Moving Spot Welding Machine Railway Roof Type Spot Welder 8
