Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SP-MF160K

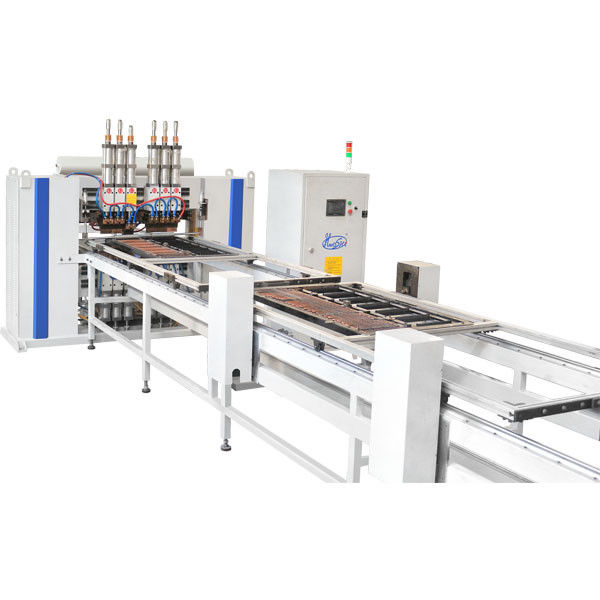

HWASHI Six Head Gantry Type Automatic Condenser Welding Machine For Refrigerator Condenser
Design Concept Of The Gantry Type Automatic Condenser Welding Machine:
1.The second-generation intermediate frequency power supply is adopted, which is more power-saving, stable and has better welding effect.
2. PLC control. Human-machine interface operation to set parameters.
3.The welding head is designed with independent air pressure adjusting program.
4.The transmission part has been changed from chain to gear rack.
5.The cylinder part has been upgraded. The imported sealed ring has been adopted.
| Intelligent welding control system Automatic welding by inputting coordinate data of welding position, welding current and other data. |
Welding Heads and Fixtures Processing and design according to the drawings of each wire shelf product. (customized) |
| Magnetic Wire Filling Device Fast and easy wire loading onto the fixture. We need to separate the material loading into three steps. Load the wires at first layer, then load the serpentine tube, at last load the wires again on the tube. |
Automatic Double-layer Feeder When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased. |
Parameter Of The Gantry Type Automatic Condenser Welding Machine:
|
Input Power |
Three-phase four-wire 440V±10% 50HZ |
|
Rated Capacity |
200KVA |
|
Rated Duty-cycle |
50% |
|
Transformer Insulation Grade |
F |
|
Storage of Welding Models |
2kinds |
|
Effective Welding Width |
1000mm(Adjustable) |
|
Effective Welding Length |
1300mm(Adjustable) |
Application Of The Gantry Type Automatic Condenser Welding Machine:

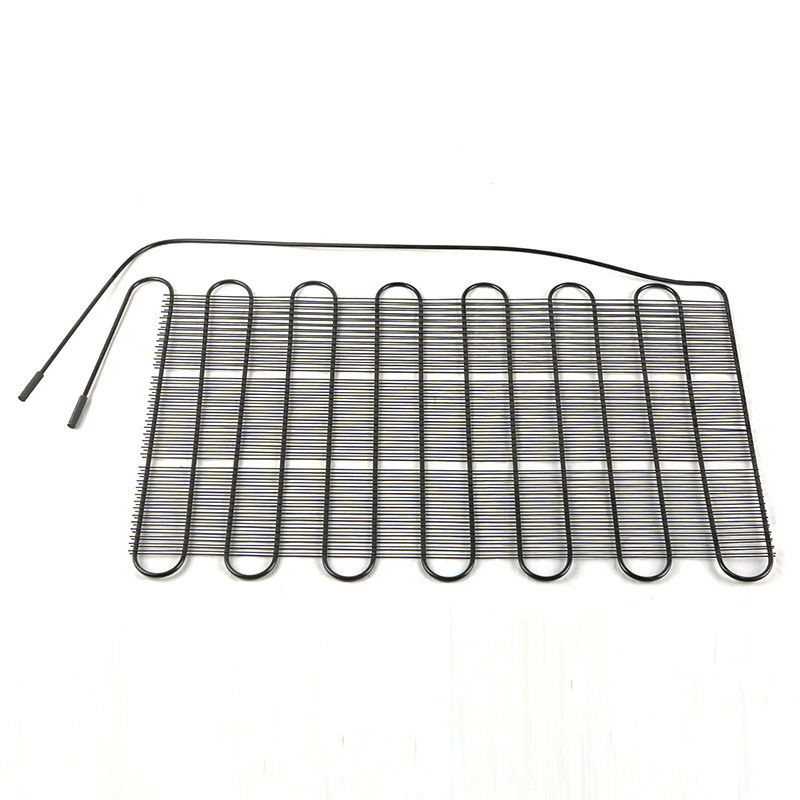

This equipment is suitable for welding Bundy tube condensers on water dispenser condensers, freezers, refrigerators and other refrigeration equipment.
Other Machines Related to The Gantry Type Automatic Condenser Welding Machine:
We can design the complete full automatic or semi automatic production line machine for refrigerator condenser.
