3-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss

3-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss

ss tube bending machine

automatic tube bending machine

Bundy Tube Bending Machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SW

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI 3-8mm CNC Automatic Condenser Bundy Tube Bending Machine
Application:
Copper, Aluminum, Bundy Tube
Size:
2440x800x1580mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
480kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

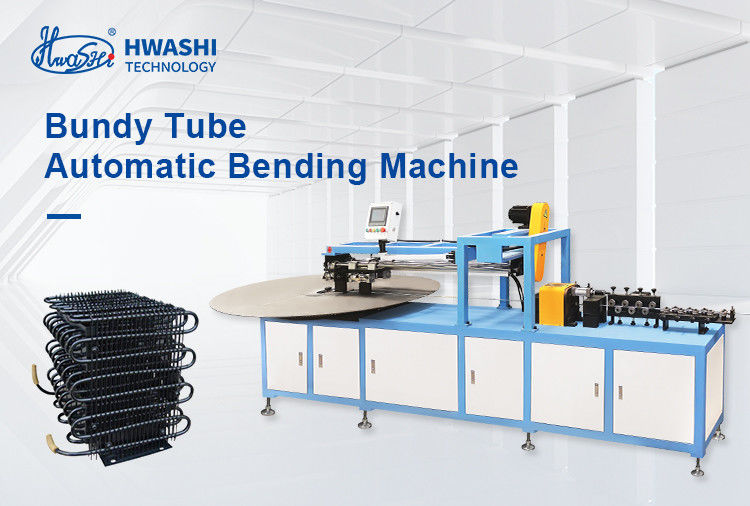

HWASHI 3-8mm CNC Automatic Condenser Bundy Tube Bending Machine

3-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss 0

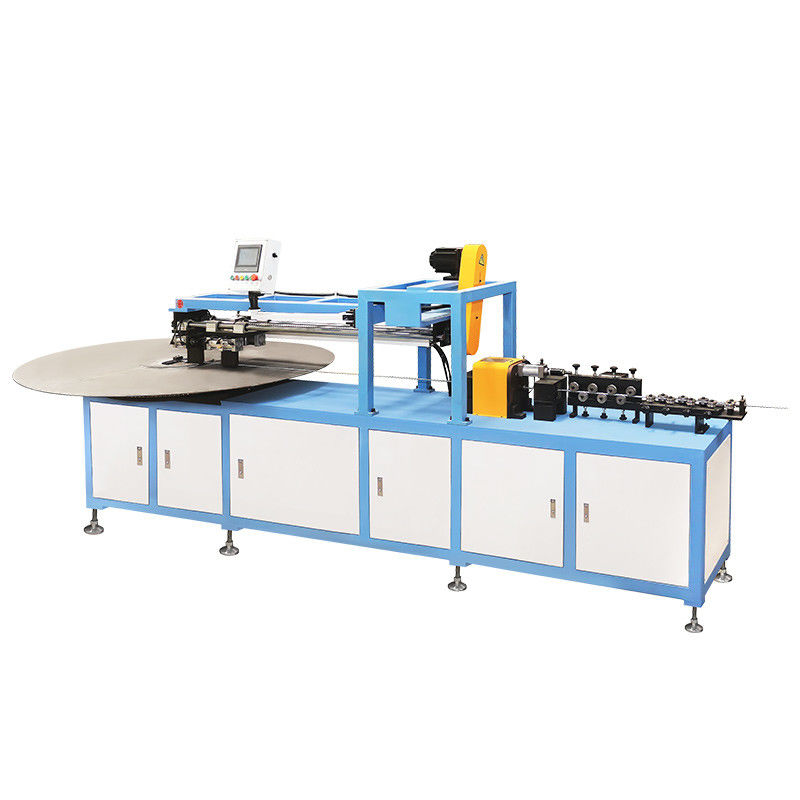

Description Of The Bending Machine
The bending machine can be used for copper, aluminum, Bundy tube, refrigerator freezer wire-tube evaporator condenser. Tubes bending machine with rotary table and or fixed table to meet different requirements from customers .The bending shapes could be setting in the PLC controller. Single tube or multi tubes all could be ''D'' shape (for better heating transfer ).

3-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss 13-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss 2
For different tube diameter, need to change the clamping mould; for different bending radius, need to change the bending mould.


Features Of The Bending Machine
1. PLC control, could be working with tube cutting machine as a production line.
2. Auto running table, protect the tube surface smooth .
3. The bending angle can be up to 180 degree.

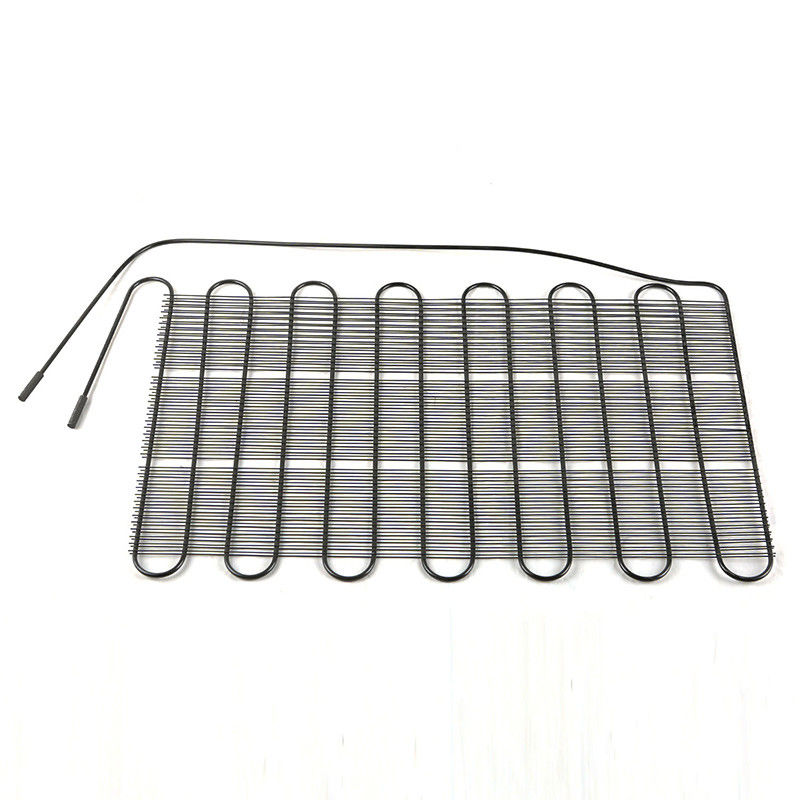

Application And Samples Of The Bending Machine
Suitable for bundy tube bending.

 3-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss 33-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss 4Configuration Of The Bending Machine


Specifications for Bundy Tube Bending Machine
Input Voltage 380V, Two-phase 50Hz
Applicable Tube Bundy tube
Working Air Pressure 0.6-0.8Mpa
Tube Coil Specification ¢3~¢10mm
Tube Bending Radius Range R7.5-R25
Bending Angle 1~180°
Number of Tube for One Time Bending 1-8pcs (depends on the tube diameter)
Single Time Bending Number of Times 110 times
Single Time Feeding Speed 10~700mm/time, be able to feed 3 times
Operation Method Touch Screen+Button
Running Mode Manual Loading+Automatic Feeding+Automatic Bending
Surface After Bending There is no obvious pull, row, bruise and knurled scratches on the surface of the tube.
Rotary Table 2mtr diameter
Machine Dimension 2440x800x1580mm
Weight 750kg



Other Machines Related to The Bending Machine

We can design the complete full automatic or semi automatic production line machine for refrigerator condenser.

3-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss 5

3-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss 6

3-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss 73-8mm CNC Automatic Condenser Bundy Tube Bending Machine Ss 8
