Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SQ-150K×2
Twenty Head Refrigerator Condenser Automatic Welding Machine For Bundy Tube Condenser
Description of Twenty Head Refrigerator Condenser Automatic Welding Machine For Bundy Tube Condenser

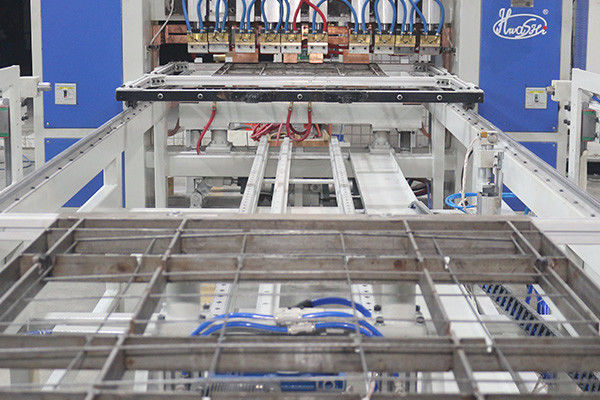

This multi-head spot welding machine adopts 6 welding heads and automatic feeding system. The operator only needs to put the material onto the feeder and press the start button, then the machine will conduct welding automatically. It is designed with single way double layer feeding system. The welding position could be set at random. The feeder will move front and back for welding. It is suitable for batch production of wire condenser.

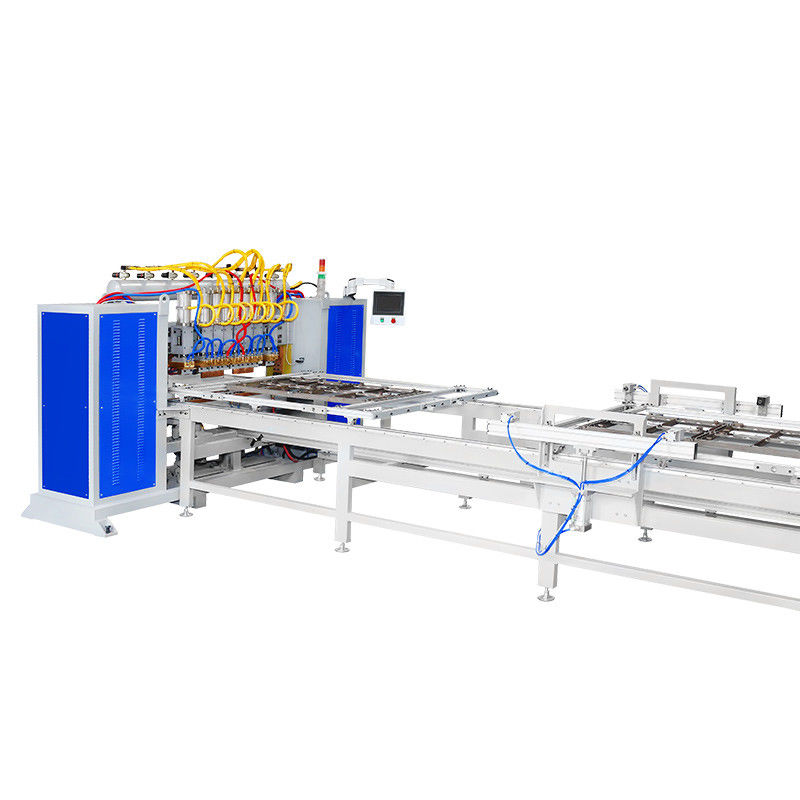

The effective welding width is 600mm while the effective welding length is 1500mm. The machine is equipped with double layer single side feeder.
| Intelligent welding control system Automatic welding by inputting coordinate data of welding position, welding current and other data. | Welding Heads and Fixtures Processing and design according to the drawings of each wire shelf product. (customized) |
| Magnetic Wire Filling Device Fast and easy wire loading onto the fixture. We need to separate the material loading into three steps. Load the wires at first layer, then load the serpentine tube, at last load the wires again on the tube. | Automatic Double-layer Feeder When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased. |
Technical Data of Twenty Head Refrigerator Condenser Automatic Welding Machine For Bundy Tube Condenser
| Items | Data |
| Electricity Requirement | three-phase 380V±10% |
| Control Mode | PLC |
| Effective Welding Width | 600mm (customized) |
| Effective Welding Length | 1500mm (customized) |
| Automatic Moving Speed | 200-500mm/s (adjustable) |
| Machine Dimension | 6500mmx2500mm (depends on machine design) |
| Water Temperature | 15-25℃ |
Application and Samples of Twenty Head Refrigerator Condenser Automatic Welding Machine For Bundy Tube Condenser
Twenty Head Refrigerator Condenser Automatic Welding Machine For Bundy Tube Condenser is suitable for welding copper and aluminum pipes and is widely used in industries such as air conditioning condensers.

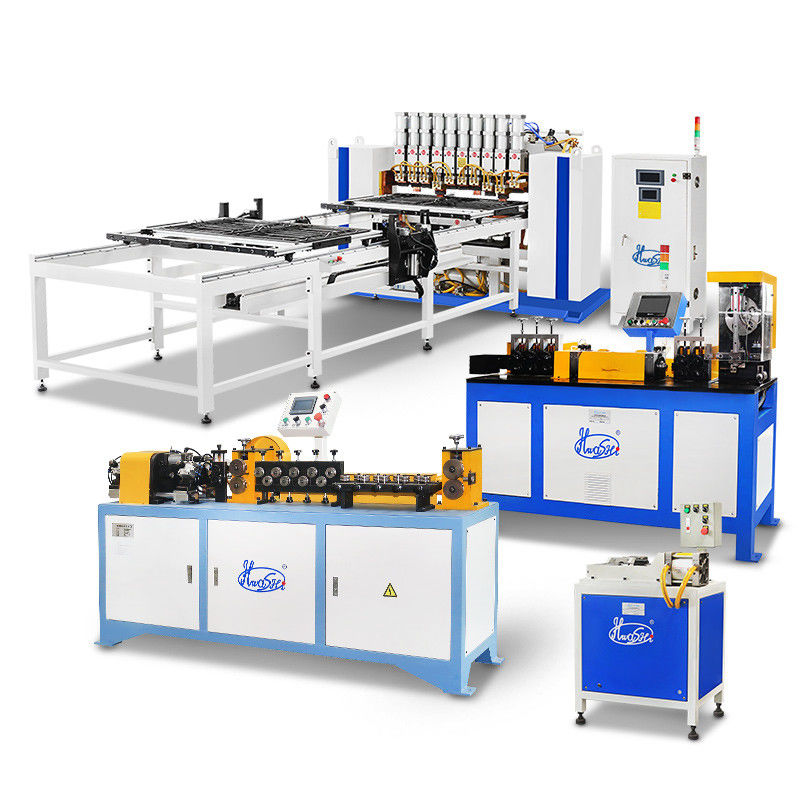

Production Procedure
Q＆A about Twenty Head Refrigerator Condenser Automatic Welding Machine For Bundy Tube Condenser
Adopt medium frequency inverter welding source. The three-phase power supply is under rectifying through a special inverter and converted to1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity.
Adujustable welding size
High automation level
Utilization of medium-frequency inverter power supply
Our welding engineers are available for 24-hour online guidance and welding training.
we offer these four things: Chinese and English manuals, circuit diagrams, installation videos, and operation videos.
