High Speed Condenser Wire Straightening And Cutting Machine 1.1-1.5mm Motor Driven

High Speed Condenser Wire Straightening And Cutting Machine 1.1-1.5mm Motor Driven

Condenser Wire Straightening

Wire Straightening and Cutting Machine

wire straightening cutting machine

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

HS-HC-1.1-1.5

Contact Us
Request A Quote
Product Details
Product Name:
HWASHI High Speed Condenser Wire Straightening And Cutting Machine 1.1-1.5mm Motor Driven
Application:
Wire Straightening And Cutting
Size:
900x1500x1850mm
Condition:
New
Warranty:
12months
Certificate:
CE/CCC/ISO
Service Life:
8-10 Years
Weight:
480kg
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

HWASHI High Speed Condenser Wire Straightening and Cutting Machine 1.1-1.5mm Motor Driven



                                High Speed Condenser Wire Straightening And Cutting Machine 1.1-1.5mm Motor Driven 0

Detailed Description Of The Straightening and Cutting Machine:

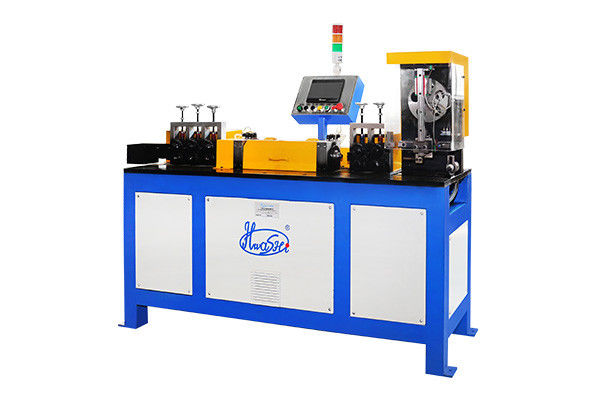

The straightening and utting machine is for producing the iron wires which are used in producing condenser. It is driven by motor to do straightening and cutting in order to achieve high speed production. The machine is composed of decoiler, machine body and unloading tray. The main body is composed of wire feeding wheels, straightening shaft, encoder, rear wire wheel and rotary cutter.



1.The man-machine integrated operation interface is adopted, and the operation is simple.

2.The tungsten steel mold is used as the crimping wheel, which has high durability and no scratches on the wire surface.

3.The servo wire feeding and flying shear structure are adopted, and the feeding cutting precision is high and the error is small.

High Speed Condenser Wire Straightening And Cutting Machine 1.1-1.5mm Motor Driven 1



High Speed Condenser Wire Straightening And Cutting Machine 1.1-1.5mm Motor Driven 2

4.High efficiency, 3-4 times higher than ordinary straightening machine efficiency.

5.It adopts PLC touch screen operation, with functions such as automatic counting, preset cutting number, and automatic shutdown after work is completed.


The size can be customized according to your product needs.



Our high-speed wire cutting machine combine the advantages of all the machines made in China and abroad. Surface doesn't have no scratches .Cutting length tolerance is +/- 0.5 mm, the length of the host automatically is adjustable and touch screen control system, and be able to preset the output and material lacking alarm. Compared with the traditional straightening cutting machine efficiency is increased by more than three or four times, at the same time, it is more convenient to adjust and smaller precision. For the production efficiency, save manpower, widely used in straightening and cutting iron wire, stainless steel wire, galvanized steel, aluminium wire and other metal wire. The device structure is reasonable, stable and reliable, simple operation, high degree of automation, one operator can manage several machines at the same time, greatly improve the production efficiency, is the hardware, network cable and other manufacturers must be special equipment.


Features Of The Straightening and Cutting Machine

The Straightening and Cutting Machine integrates operation interface and adopts tungsten steel as wire roller, which is high durability and no scratches on the wire surface. With servo wire feeding and flying shear structure, its wire feeding and cutting precision is high. As a result, 3 to 4 times higher than the traditional straightening and opening machine.

Technical Parameter Of The Straightening and Cutting Machine

Model

HS-HC-1.1-1.5

HS-HC-1.6-3

HS-HC-2-4

HS-HC-3-5

HS-HC-5-7

Input Power

AC380V(50Hz/60Hz)

Suitable Wire Material

Normal low carbon steel wire/stainless steel wire/galvanized steel wire/copper coated steel wire

Air Pressure

0.5-0.6Mpa

Wire Diameter

1.1-1.5mm

1.6-3mm

2.0-4.0mm

3.0-5.0mm

5.0-7.0mm

Cutting Length

50-5000mm

Max. Cutting Speed

Max. 350pcs/min

Max. 250pcs/min

Max. 250pcs/min

Max. 230pcs/min

Max. 200pcs/min

Wire Speed

110m/min

100m/min

90m/min

80m/min

70m/min

Price (FOB Shenzhen)

USD10000

USD10500

USD11000

USD11500

USD12000

Decoiler

300kg (without Motor)

USD750

500kg(without Motor)

USD1000

1 Ton (with Motor)

USD1800

2 Ton (with Motor)

USD2200

Cutting Precision

±0.5mm (except for accelerate and decelerate)

Operation System

PLC Touch Screen

Running     Mode

Automatic

Configuration Of The Straightening and Cutting Machine

No.

Items

Brand

1

Machine Main Body

HWASHI professional welding, post weld stress relief treatment

2

Painting

Sand blasting treatment, surface spray powder, color can be customized.

3

PLC

Panasonic

4

Servo Motor

TECO

5

Touch Screen

Weinview/Samkoon

6

Encoder

Omron

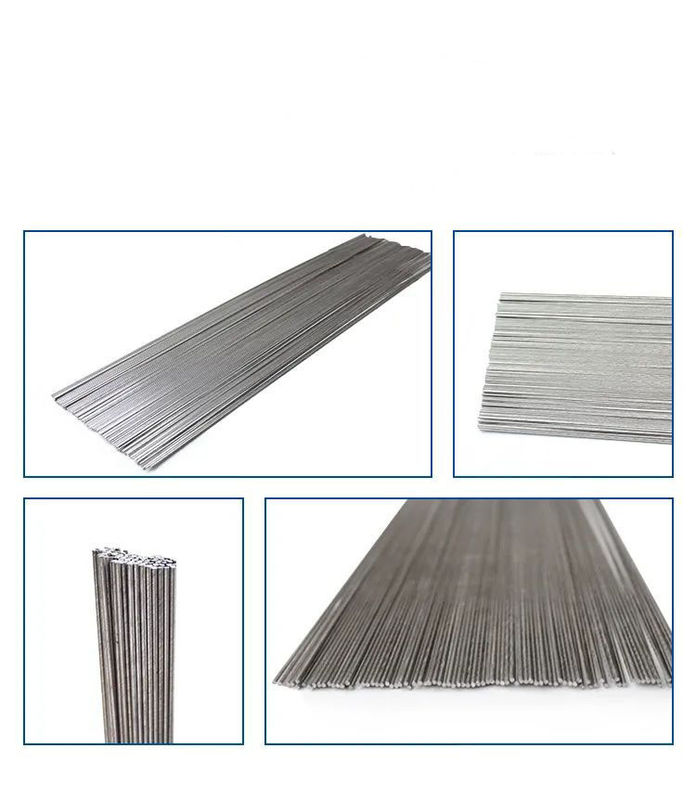

Samples Of The Straightening and Cutting Machine

High Speed Condenser Wire Straightening And Cutting Machine 1.1-1.5mm Motor Driven 4High Speed Condenser Wire Straightening And Cutting Machine 1.1-1.5mm Motor Driven 5High Speed Condenser Wire Straightening And Cutting Machine 1.1-1.5mm Motor Driven 6High Speed Condenser Wire Straightening And Cutting Machine 1.1-1.5mm Motor Driven 7
