Place of Origin:
China
Brand Name:
HWASHI
Certification:
CE/CCC/ISO
Model Number:
WL-SP-160K

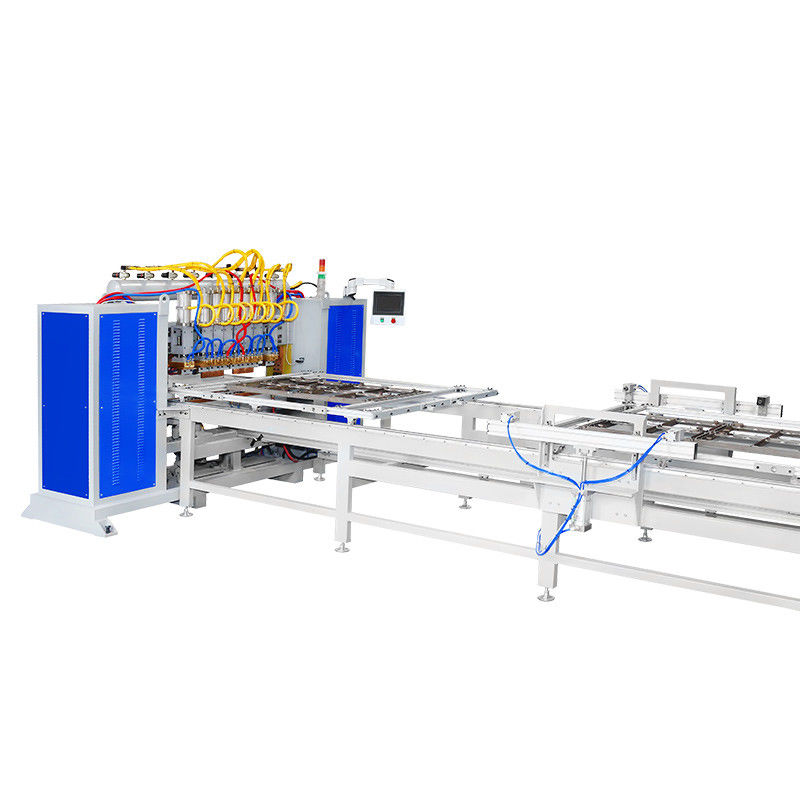

Hwashi Gantry Type Condenser Welding Machine With 6 Welding Heads For Air Conditioner
Description of Hwashi Gantry Type Condenser Welding Machine With 6 Welding Heads For Air Conditioner
Hwashi Gantry Type Condenser Welding Machine With 6 Welding Heads For Air Conditioner is developed and designed by our company. The speed of wire feeding reaches 80m/min, the fastest speed in China. Cut off length error reaches ±0.5mm. The length is automatically adjusted by the machine. Man-machine integrated touch screen control system. Output preset and shortage alarm can be set. The efficiency of this machine is three or four times higher compared to the traditional wire straightening and cutting machine. At the same time, the adjustment is more convenient and the precision of cutting is higher. It can improve efficiency and save manpower for production line. Widely used in iron wire, stainless steel wire, galvanized wire, aluminum wire and other metal wire processing. One operator can manage multiple machines at the same time, greatly improving production efficiency.
| Intelligent welding control system Automatic welding by inputting coordinate data of welding position, welding current and other data. |
Welding Heads and Fixtures Processing and design according to the drawings of each wire shelf product. (customized) |
| Magnetic Wire Filling Device Fast and easy wire loading onto the fixture. We need to separate the material loading into three steps. Load the wires at first layer, then load the serpentine tube, at last load the wires again on the tube. |

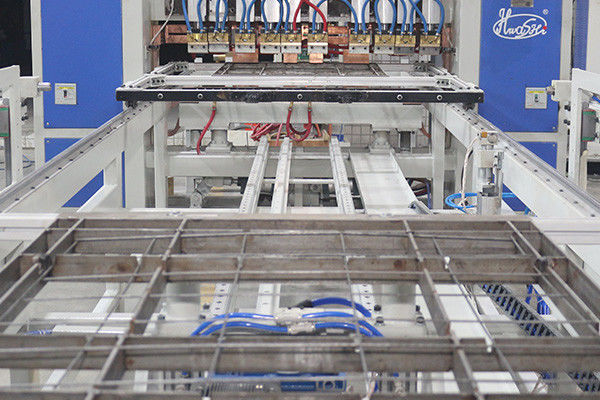

Automatic Double-layer Feeder When one fixture is under welding process, the wire filling system will load the wires onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased. |
Main Techincal Data of Hwashi Gantry Type Condenser Welding Machine With 6 Welding Heads For Air Conditioner
| Items | Data |
| Electricity Requirement | three-phase 380V±10% |
| Power Cable | 75mm²,air switch250A |
| Control Mode | PLC |
| Effective Welding Width | 600mm (customized) |
| Effective Welding Length | 1500mm (customized) |
| Automatic Moving Speed | 200-500mm/s (adjustable) |
| Machine Dimension | 6500mmx2500mm (depends on machine design) |
FAW
The whole production line includes the following machines:
High speed wire straightening and cutting machine
Tube straightening and cutting machine
Tube bending machine
Automatic condenser welding machine
As a national high-tech enterprise, the company has independent intellectual property rights and research and development capabilities. At present, it has obtained more than 10 national invention patents, control system software copyright, and more than 40 utility model patents and appearance patents of related technologies.
Welding Sample of Hwashi Gantry Type Condenser Welding Machine With 6 Welding Heads For Air Conditioner
Wire Tube Condenser Production Line
After-sales Promise of Hwashi Gantry Type Condenser Welding Machine With 6 Welding Heads For Air Conditioner
One-year free service and lifelong follow-up maintenance.
Within 24 hours after receiving the feedback from the user, our company will respond and solve the problem accordingly.
Pay attention to the usage status of your equipment at any time.
