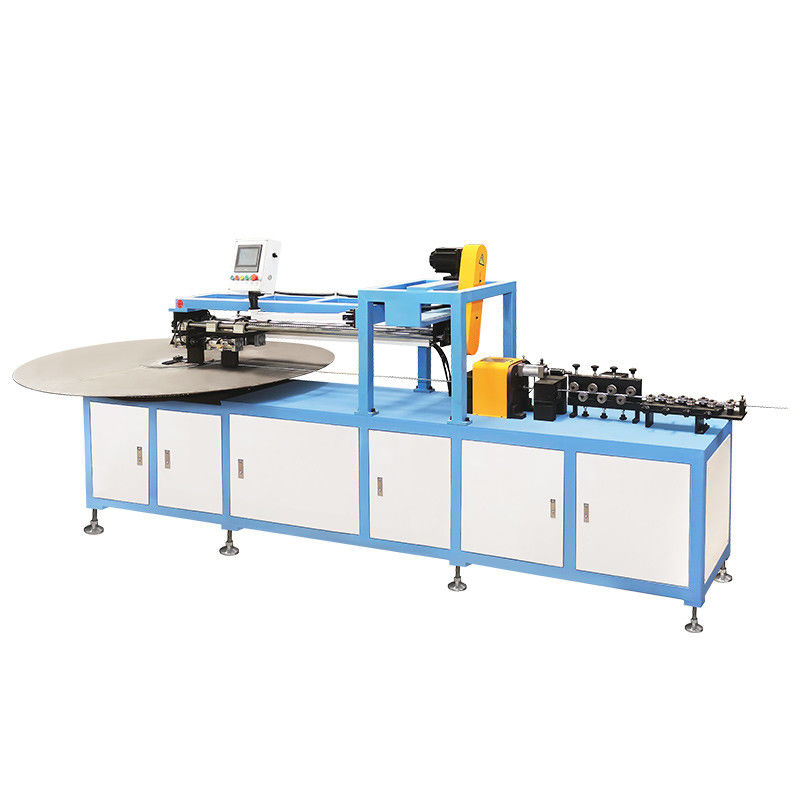

Hwashi PLC Bending And Forming Machine For Bundy Tube
Description of Hwashi PLC Bending And Forming Machine For Bundy Tube
Hwashi PLC Bending And Forming Machine For Bundy Tube is mainly for bending the tubes with different diameter, length and radius. Specially used in bending and forming of Bundy tube. There is no obvious pull, scratch, pressure and knurled scratch on the surface. Length can be adjusted in the controller. Man-machine integrated touch screen control system. The adjustment is more convenient and the precision is high.
We have the semi-automatic bending machine with fixed table. Also we have the semi-automatic bending machine with rotary table and full automatic bending machine with combination of cutting functions.
For different tube diameter, need to change the clamping mould; for different bending radius, need to change the bending mould.
Parameter of Hwashi PLC Bending And Forming Machine For Bundy Tube
| Input Voltage | 220V, 2-phase 50Hz1.57kW+2.36kW |
| Applicable Tube | Bundy tube/Copper tube/ Aluminium tube |
| Tube Coil Specification | ￠3~￠10mm |
| Number of Tube for One Time Bending | 1-12pcs (depends on the tube diameter) |
| Single Time Bending Number of Times | 110 times |
| Single Time Feeding Speed | 10~700mm/time, be able to feed 3 times |
| Operation Method | Touch Screen+Button |
| Running Mode | Manual Loading+Automatic Feeding+Automatic Bending |
| Fixed Table | 2mtr diameter |
| Machine Dimension | 2440x800x1580mm |
| Weight | 750kg |
Application and Samples of Hwashi PLC Bending And Forming Machine For Bundy Tube

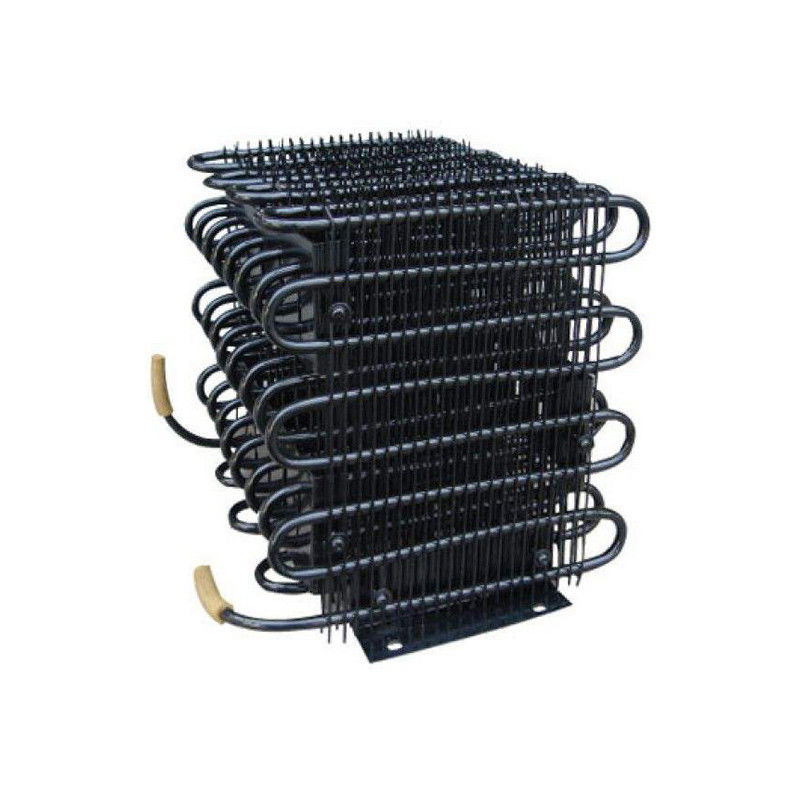

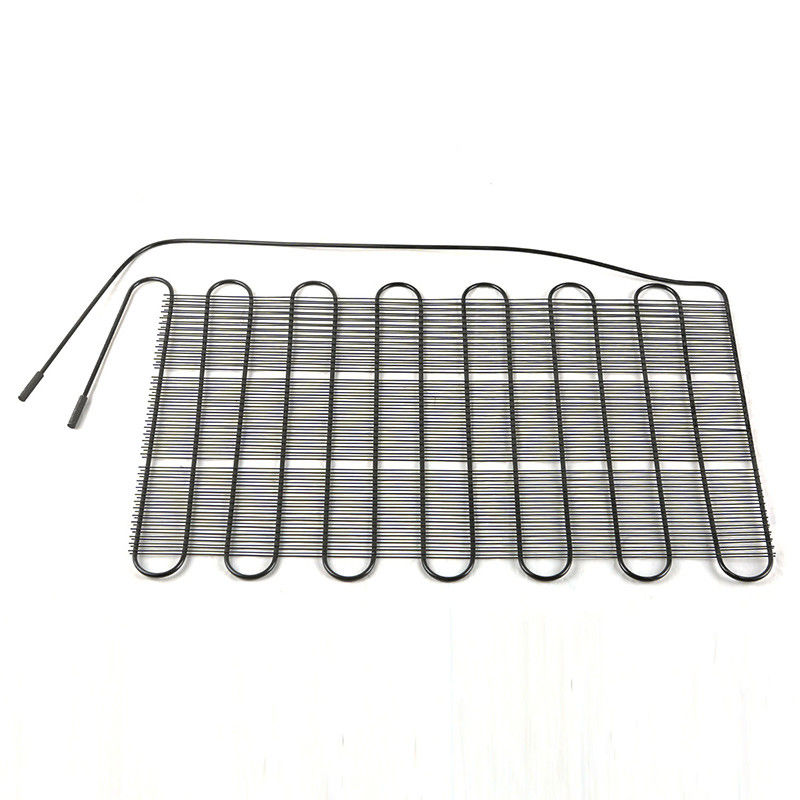

Hwashi PLC Bending And Forming Machine For Bundy Tube is suitable for bending and forming of Bondi tubes, and is widely used in industries such as air conditioning condensers.
FAQ:

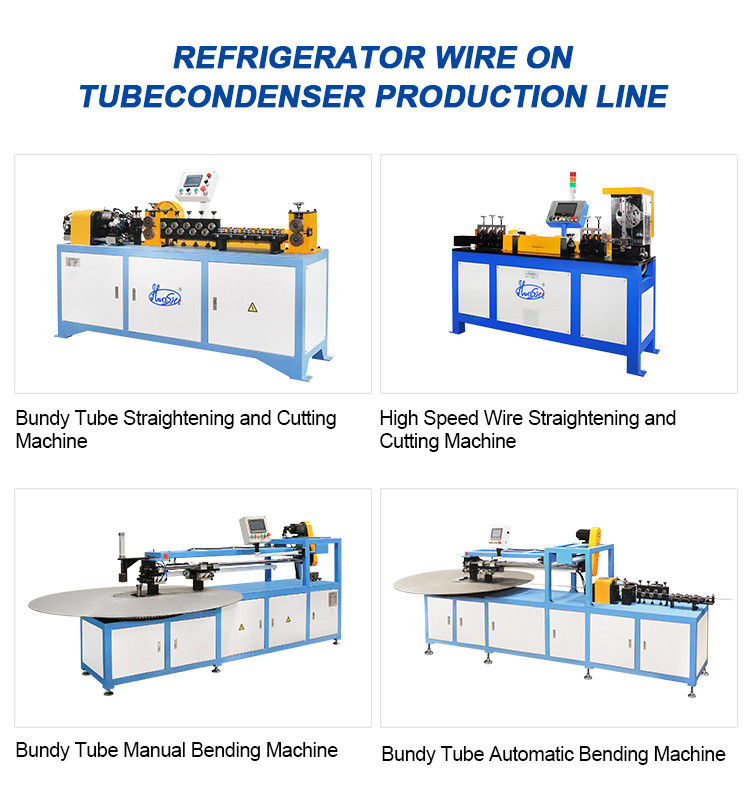

The whole production line includes the following machines:
High speed wire straightening and cutting machine
Tube straightening and cutting machine
Tube bending machine
Automatic condenser welding machine
Our automated welding lines are utilized by companies involved in the production of refrigeration equipment, air-conditioning components, and welding services.
Established in 2001, our company boasts a 22-year experience in the industrial welding solutions industry. With a global reach, we have delivered welding equipment and automation welding solutions to over 1,500 customers across more than 80 countries.
